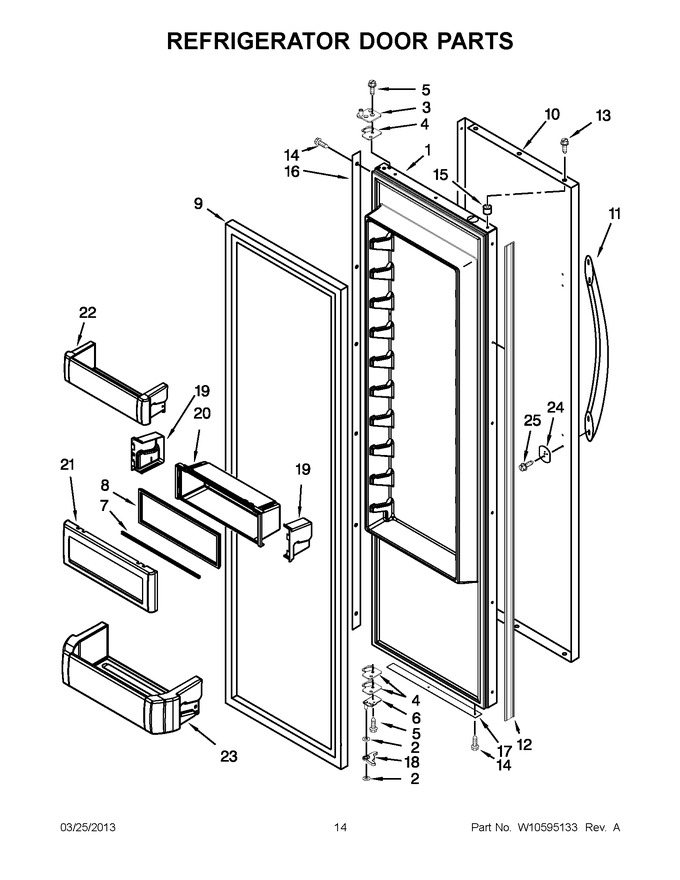

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193490 | Door Assembly, Refrigerator |
|
- | |||||
| 2 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 3 | W11673500 | Assembly, Top Hinge (Replaces: W10485980) |
|
Immediately | $ 117.33 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom |
|
Immediately | $ 81.91 | ||||
| 7 | W11448696 | Rail, Lid (Replaces: 2222796) |
|
$ 155.64 | |||||
| 8 | W11448696 | Gasket, Utility Bin (Replaces: 2222982) |
|
$ 155.64 | |||||
| 9 | WP2266902 | Door Gasket, Magnetic (Replaces: 2222811) |
|
$ 297.27 | |||||
| 10 | W10523739 | Skin, Door (stainless) |
|
- | |||||
| 11 | WP2316868 | Handle, Door (stainless) (Replaces: 2316868) |
|
Immediately | $ 253.29 | ||||
| 12 | 2309060 | Spacer, Handle Side Door |
|
- | |||||
| 13 | W10759522 | Screw (Replaces: 488568) |
|
$ 7.42 | |||||
| 14 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 10.28 | |||||
| 15 | 2005433 | Spacer, Door Skin (top) |
|
$ 21.00 | |||||
| 16 | W10142296 | Spacer, Door |
|
- | |||||
| 17 | 2004934 | Spacer, Door Skin (bottom) |
|
- | |||||
| 18 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 34.45 | ||||
| 19 | WPW10323172 | Utility Bin Endcap (right Hand) (Replaces: W10323172) |
|
$ 7.74 | |||||
| 19 | WPW10323173 | Utility Bin Endcap (left Hand) (Replaces: W10323173) |
|
$ 7.74 | |||||
| 20 | W11448696 | Bin, Utility Center (Replaces: W10323036) |
|
$ 155.64 | |||||
| 21 | W11553221 | Door, Utility Bin (Replaces: 2257616) |
|
Immediately | $ 62.68 | ||||
| 22 | W10323599 | Bin, Door-shallow |
|
$ 131.95 | |||||
| 23 | W10323747 | Shelf, Door (gallon) |
|
$ 130.82 | |||||
| 24 | W10127710 | Plate, Handle Door |
|
Immediately | $ 23.35 | ||||
| 25 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 7.47 |
