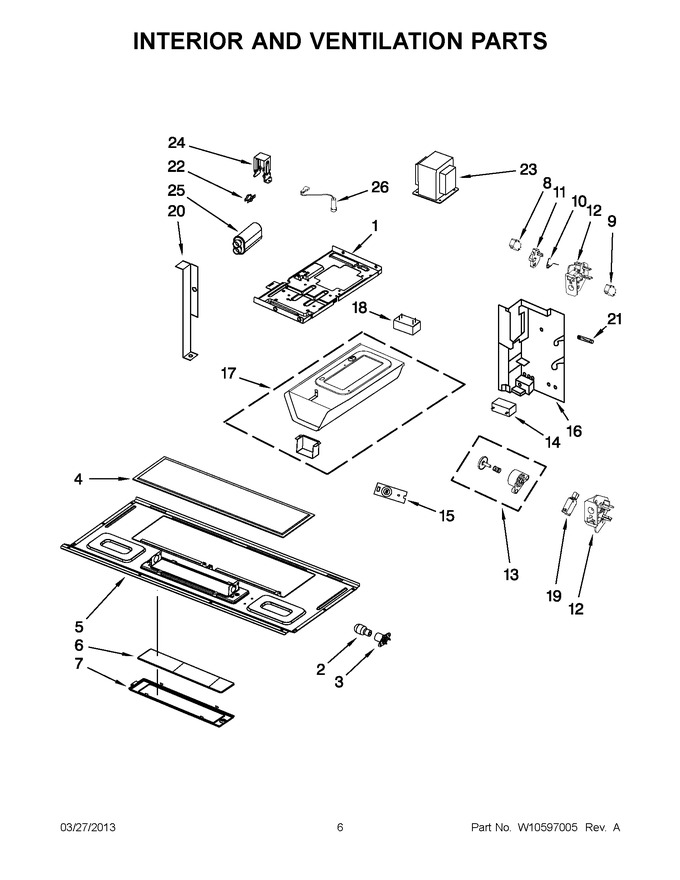

03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10245184 | Chassis |
|
- | |||||
| 2 | 8206232A | Lamp 40 Watt (Replaces: 8206232) |
|
Immediately | $ 6.94 | ||||
| 3 | W10210871 | Holder, Lamp |
|
Immediately | $ 6.81 | ||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 29.33 | ||||
| 5 | W10245196 | Plate, Bottom |
|
$ 231.36 | |||||
| 6 | WPW10210875 | Glass, Lamp (Replaces: W10210875) |
|
$ 315.85 | |||||
| 7 | W10210873 | Holder, Glass |
|
$ 5.75 | |||||
| 8 | W10211972 | Switch, Micro |
|
Immediately | $ 47.16 | ||||
| 9 | W10269458 | Switch, Micro (Replaces: W10211973) |
|
Immediately | $ 36.10 | ||||
| 10 | W10156812 | Spring, Interlock |
|
Immediately | $ 10.93 | ||||
| 11 | W10562613 | Plate, Cam (Replaces: W10156811) |
|
Immediately | $ 16.05 | ||||
| 12 | WPW10156813 | Support, Interlock (bottom) (Replaces: W10156813) |
|
Immediately | $ 7.26 | ||||
| 12 | WP8206419 | Support, Interlock (top) (Replaces: 8206419) |
|
Immediately | $ 20.13 | ||||
| 13 | W10197758 | Piston Assembly |
|
Immediately | $ 84.02 | ||||
| 14 | W11405831 | Capacitor, Hood Motor (Replaces: W10245191) |
|
$ 39.92 | |||||
| 15 | W10163422 | Thermistor Pcba |
|
$ 161.73 | |||||
| 16 | W10245193 | Plate, Side |
|
$ 25.63 | |||||
| 17 | W10310720 | Chassis Assembly |
|
- | |||||
| 18 | W10342990 | Resistor, Cement |
|
$ 59.24 | |||||
| 19 | W10211974 | Switch, Micro |
|
Immediately | $ 68.12 | ||||
| 20 | W10313275 | Bracket, Top Cavity |
|
$ 32.06 | |||||
| 21 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 | ||||
| 22 | W10864742 | Thermostat, Cavity Tco 125/-35 Celcius (Replaces: W10476901) |
|
$ 79.80 | |||||
| 23 | W10245185 | Transformer, High Voltage |
|
- | |||||
| 24 | W10532063 | Bracket, Capacitor (Replaces: W10156817) |
|
$ 26.72 | |||||
| 25 | 8206562 | Capacitor, High Voltage |
|
Immediately | $ 183.78 | ||||
| 26 | W11817793 | Diode, High Voltage (Replaces: W10492278) |
|
- |
