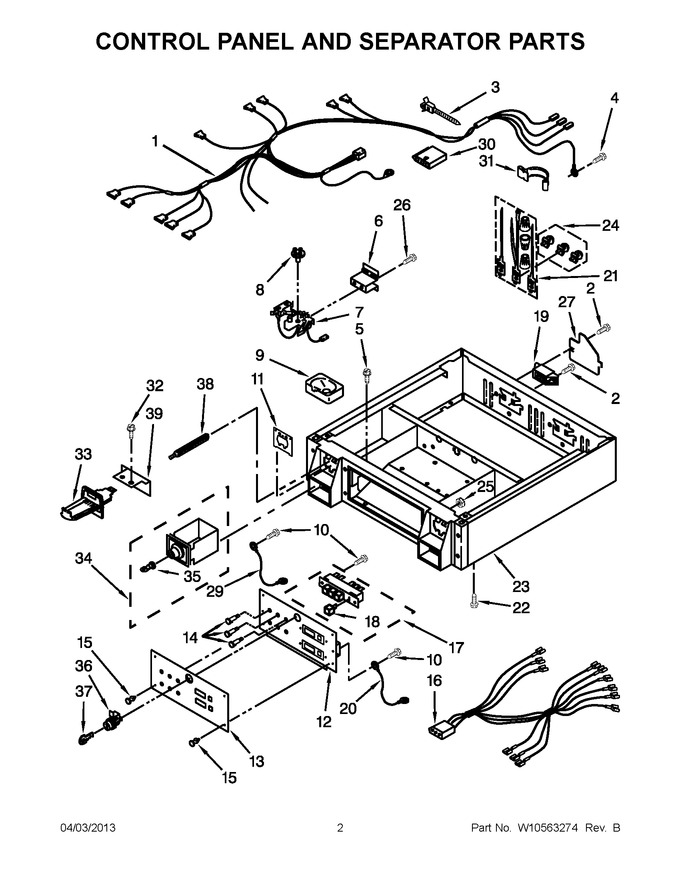

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8576522 | Harness, Wire |
|
- | |||||
| 2 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.76 | |||||
| 3 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 4 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 5 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 6 | 3390115 | Bracket, Timer |
|
- | |||||
| 7 | 279737 | Timer (Replaces: 3389668) |
|
Immediately | $ 382.97 | ||||
| 8 | WP3387974 | Timing Cam (Replaces: 3387974) |
|
$ 8.74 | |||||
| 8 | 51-161-6 | Timing Cam, 6 Pin (30 Minutes) (Replaces: 343777) |
|
$ 34.52 | |||||
| 9 | WP385421 | Funnel, Coin (Replaces: 385421) |
|
Immediately | $ 77.91 | ||||
| 10 | WP489128 | Screw (Replaces: 303921) |
|
$ 11.40 | |||||
| 11 | 279950 | Plate, Adapter (Replaces: 3954761) |
|
Immediately | $ 33.72 | ||||
| 12 | 3979100 | Panel, Control |
|
- | |||||
| 13 | 8565384 | Insert, Decorative |
|
- | |||||
| 14 | 3979325 | Lamp, Indicator (red) |
|
- | |||||
| 14 | 3979327 | Lamp, Indicator (blue) |
|
- | |||||
| 14 | 3979326 | Lamp, Indicator (amber) |
|
- | |||||
| 15 | 354239 | Rivet |
|
- | |||||
| 16 | 8283296 | Wire Jumper (light & Switch) |
|
- | |||||
| 17 | WPW10330137 | Switch, Pushbutton (Replaces: W10330137) |
|
Immediately | $ 340.60 | ||||
| 18 | WPW10330137 | Pushbutton (Replaces: 8316433) |
|
Immediately | $ 340.60 | ||||
| 19 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 20 | 3401699 | Jumper Wire (Replaces: 8539882) |
|
- | |||||
| 21 | 279318 | Terminal, Brass & Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 22 | 3400500 | Bolt, |
|
Immediately | $ 14.04 | ||||
| 23 | 3978853 | Collar |
|
- | |||||
| 24 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 25 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 26 | WP3400094 | Screw (Replaces: 3400094) |
|
$ 9.26 | |||||
| 27 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 29 | 3401699 | Jumper Wire (ground) |
|
- | |||||
| 30 | 353424 | Connector, Sensor |
|
$ 18.95 | |||||
| 31 | WP98997 | Clip Following Parts Optional (Replaces: 98997) |
|
$ 11.64 | |||||
| 32 | WP356418 | Screw (Replaces: 96435) |
|
$ 9.26 | |||||
| 33 | W11312584 | Insert, Blank (Replaces: 8316264) |
|
$ 32.97 | |||||
| 33 | 8316265 | Insert - 25 Cent |
|
- | |||||
| 33 | W11126319 | Coin Chute (Replaces: 8316520) |
|
Immediately | $ 337.72 | ||||
| 34 | W11190039 | Money Box W/lock (Replaces: 8316525) |
|
Immediately | $ 197.34 | ||||
| 35 | N/P | Key (money Box) (when Ordering, Specify Vendor And Key Number) |
|
- | |||||
| 36 | W11315637 | Assembly, Cam & Security Lock (Replaces: 8316526) |
|
Immediately | $ 76.34 | ||||
| 37 | N/P | Key (service Door) (when Ordering Specify Vendor And Key Number) |
|
- | |||||
| 38 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 78.95 | ||||
| 39 | 3390424 | Extension, Slide |
|
Immediately | $ 71.66 |
