Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10580766 Tech Sheet, English Appelez-nous -
1 W10594064 Energy Guide Appelez-nous -
1 W10435040 Installation, Instructions Appelez-nous -
1 W10580767 Tech Sheet, French Appelez-nous -
1 W10350359 Use & Care Guide, English/french Appelez-nous -
1 W10350360 Use & Care Guide, Spanish Appelez-nous -
2 W11613572 Arm, Hinge (right Hand)   (Replaces: W10274921) In-Stock Immediately $ 75.54

2 W11806566 Arm, Hinge (left Hand)   (Replaces: W10274922) In-Stock Immediately $ 64.59

3 W10850371 Stiffener, Door   (Replaces: W10195120) In-Stock Immediately $ 29.59

4 WPW10505606 Front Panel (includesi Tems 6 & 11) (stainless)   (Replaces: W10505606) Special Order $ 373.38

4 W10531291 Front Panel (includesi Tems 6 & 11) (black) Special Order $ 138.48

4 W10505604 Front Panel (includesi Tems 6 & 11) (white) Special Order $ 140.57

4 WPW10505605 Front Panel (includesi Tems 6 & 11) (biscuit/bisque)   (Replaces: W10505605) Special Order $ 315.76

5 W10369028 Access Panel (biscuit/bisque) Special Order $ 153.66

5 W10827631 Access Panel (black)   (Replaces: W10369024) In-Stock Immediately $ 176.08

5 W10827632 Access Panel (white)   (Replaces: W10369026) In-Stock Immediately $ 147.33

6 W11178521 Nameplate   (Replaces: W10387117) In-Stock Immediately $ 56.82

6 WPW10393264 Nameplate (grey)   (Replaces: W10393264) Special Order $ 60.97

7 W10831329 Insulation, Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 38.97

8 WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 6.99

8 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 27.35

8 WPW10503550 Fastener (biscuit/bisque)   (Replaces: W10503550) In-Stock Immediately $ 26.10

9 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.56

10 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 7.92

11 W10485104 Pocket Assembly (silver) Appelez-nous -
11 W10485101 Pocket Assembly (black) Special Order $ 28.46

11 W10485103 Pocket Assembly (biscuit/bisque) Appelez-nous -
11 W10485102 Pocket Assembly (white) Appelez-nous -
12 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 6.01


    View Diagram in Separate Window     Print Icon   Print Part List

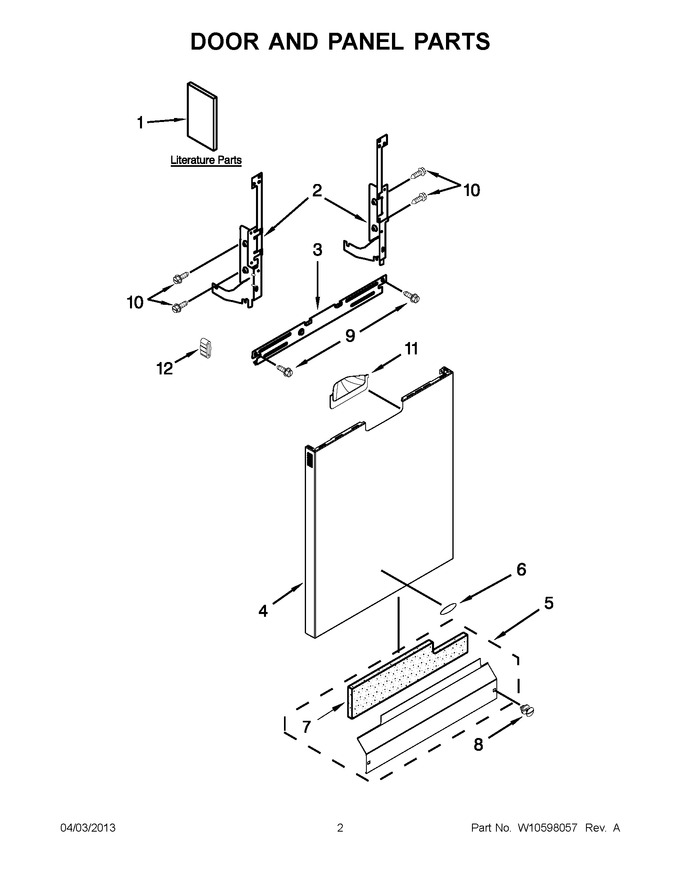

Diagram for WDF730PAYM5
