SELECT A DIAGRAM

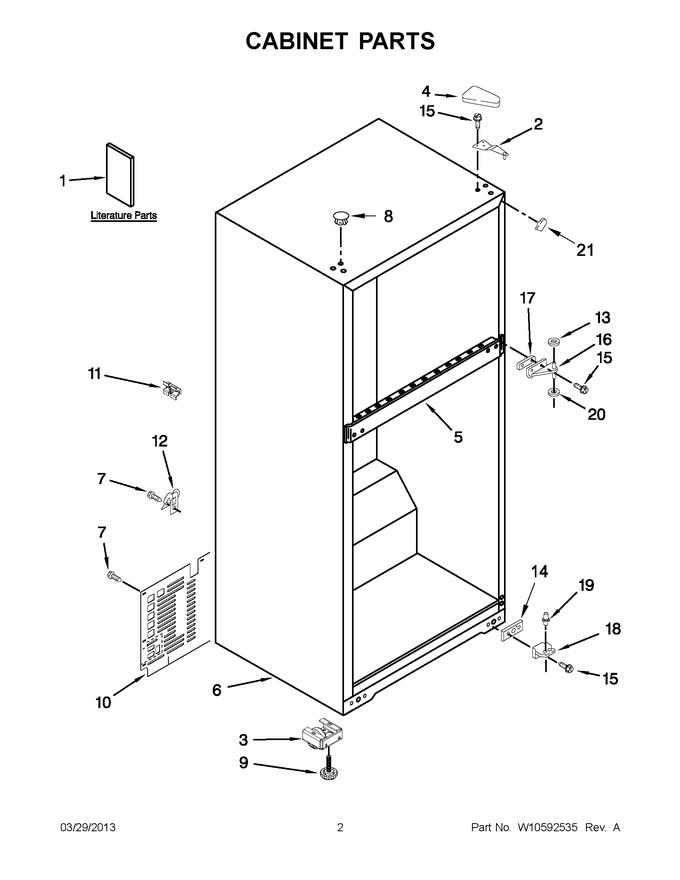

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10214129		Use & Care Guide		Appelez-nous	-
1	677969		Do-it-yourself Repair Manuals				$ 30.30
1	W10402929		Service & Wiring Sheet		Appelez-nous	-
1	W10564384		Energy Label		Appelez-nous	-
2	WP2261963		Assembly, Hinge, Top   (Replaces: 2261963)			Immediately	$ 107.48
3	WPW10142530		Assembly, Roller Cover, Hinge   (Replaces: W10142530)			Immediately	$ 106.29
4	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 17.21
5	N/P		Center Rail (not A Serviceable Part)		Appelez-nous	-
6	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
7	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
8	WPW10520305		Hole Plug (black)   (Replaces: W10520305)				$ 17.26
9	WPW10133299		Leveler   (Replaces: W10133299)				$ 11.12
10	WP2264132		Cover, Unit   (Replaces: 2264132)				$ 102.39
11	2266506		Spacer, Back				$ 12.95
12	549193		Clamp, Power Cord				$ 12.65
13	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 9.67
14	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.34
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2166037		Hinge Assembly, Center   (Replaces: 2166086)				$ 76.57
17	2215385		Shim Hinge, Center (black)				$ 82.21
18	WP2325482		Hinge, Bottom   (Replaces: 2325482)			Immediately	$ 72.00
19	WP2325483		Pin, Bottom Hinge   (Replaces: 2325483)			Immediately	$ 6.80
20	WP487802		Washer (plastic)   (Replaces: 487802)			Immediately	$ 7.32
21	W11500943		Corner Filler (black)   (Replaces: 2215384)				$ 7.18

    View Diagram in Separate Window       Print Part List
