View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

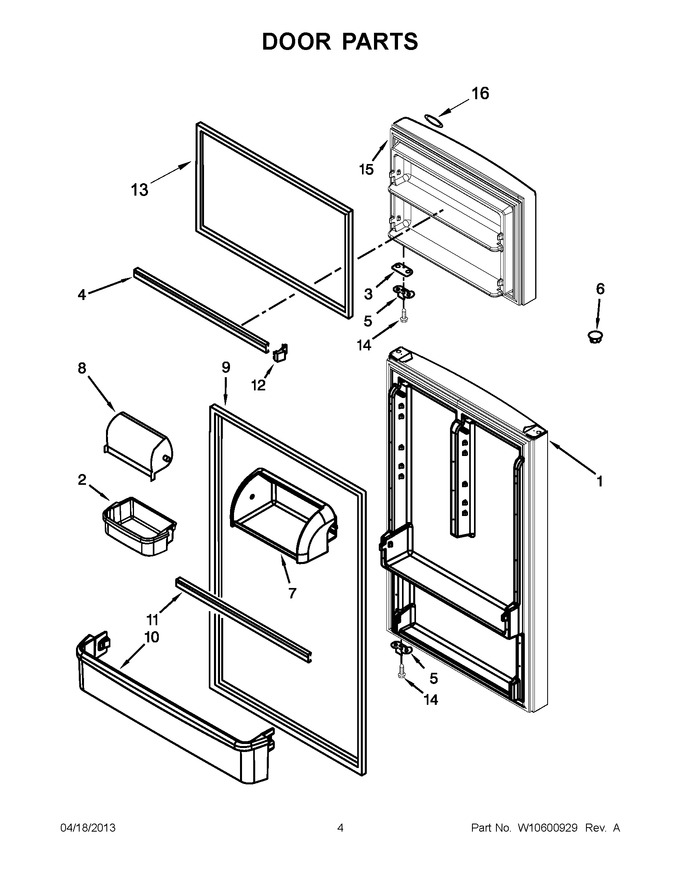

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2264716B | Refrigerator Door Panel (includes Illus. 9 & Molded Door Handle) (black) |
|
- | |||||
| 1 | W10209800 | Refrigerator Door Panel (includes Illus. 9 & Molded Door Handle) (stainless) |
|
- | |||||
| 1 | 2264716W | Refrigerator Door Panel (includes Illus. 9 & Molded Door Handle) (white) |
|
- | |||||
| 2 | W11396038 | Bin, Door (Replaces: 2265126) |
|
$ 145.75 | |||||
| 3 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.80 | ||||
| 3 | 2258681B | Shim, Door Stop (black) |
|
$ 40.80 | |||||
| 4 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 5 | W11745278 | Bracket, Door Stop (silver) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 6 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 6 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 7 | 2264477 | Housing, Compartment |
|
$ 87.34 | |||||
| 8 | 2264478 | Cover, Utility |
|
$ 32.58 | |||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 291.47 | |||||
| 9 | WP2319264W | Door Gasket, Magnetic (white) (Replaces: 2264727) |
|
Immediately | $ 296.17 | ||||
| 10 | WPW10468559 | Trim, Door Shelf (Replaces: W10468559) |
|
$ 98.42 | |||||
| 11 | WPW10234241 | Trim, Door Shelf (Replaces: W10234241) |
|
Immediately | $ 110.12 | ||||
| 12 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 13 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
$ 241.45 | |||||
| 13 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 238.68 | ||||
| 14 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.77 | |||||
| 15 | 2264717B | Freezer Door Panel (includes Illus. 13 & Molded Door Handle) (black) |
|
- | |||||
| 15 | W10209793 | Freezer Door Panel (includes Illus. 13 & Molded Door Handle) (stainless) |
|
- | |||||
| 15 | 2264717W | Freezer Door Panel (includes Illus. 13 & Molded Door Handle) (white) |
|
- | |||||
| 16 | WPW10170766 | Nameplate (silver) (Replaces: W10170766) |
|
Immediately | $ 63.45 |
