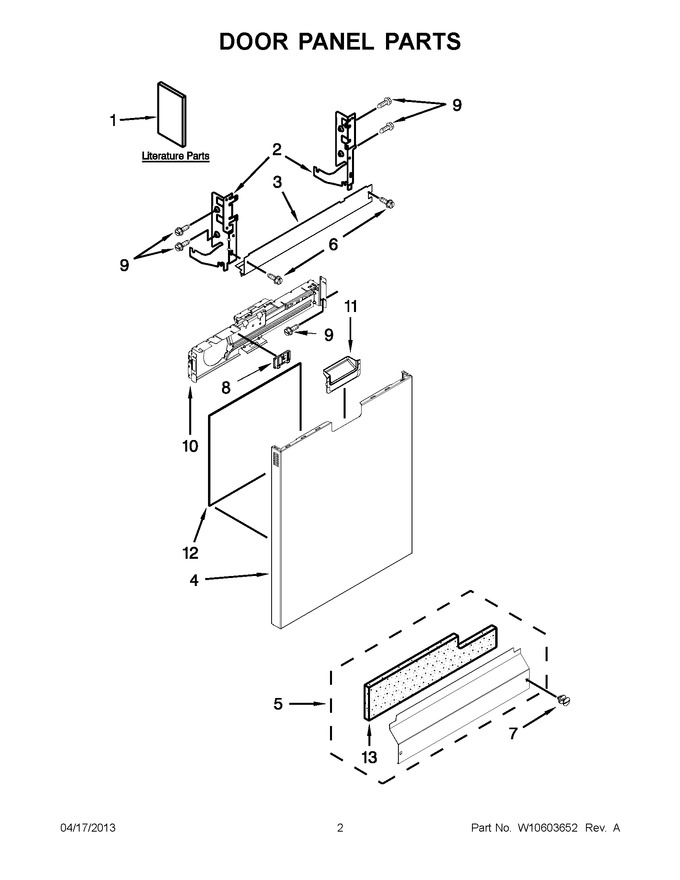

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10401504 | Instructions, Installation |
|
- | |||||
| 1 | W10508960 | Energy Guide |
|
- | |||||
| 1 | W10532755 | Use & Care Guide, English/french |
|
- | |||||
| 1 | W10580766 | Tech Sheet, English |
|
- | |||||
| 1 | W10580767 | Tech Sheet, French |
|
- | |||||
| 2 | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 128.02 | ||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 128.15 | ||||
| 3 | W10850371 | Barrier, Vapor Assembly (Replaces: W10321449) |
|
Immediately | $ 29.59 | ||||
| 4 | WPW10508945 | Panel Front (includes 8 & 11) (stainless) (Replaces: W10508945) |
|
$ 266.11 | |||||
| 5 | W10827608 | Access Panel (black) (Replaces: W10369038) |
|
$ 162.68 | |||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 7 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 27.35 | ||||
| 8 | W10463662 | Spacer, Control Bracket Panel |
|
$ 44.47 | |||||
| 9 | WP3400071 | Screw (Replaces: 3400071) |
|
Immediately | $ 7.43 | ||||
| 10 | WPW10350242 | Bracket, Control (Replaces: W10350242) |
|
$ 79.49 | |||||
| 11 | W10343324 | Pocket, Handle (black) |
|
$ 78.37 | |||||
| 12 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 86.61 | |||||
| 13 | W10831329 | Insulation, Toe Panel (Replaces: W10073540) |
|
Immediately | $ 38.97 |
