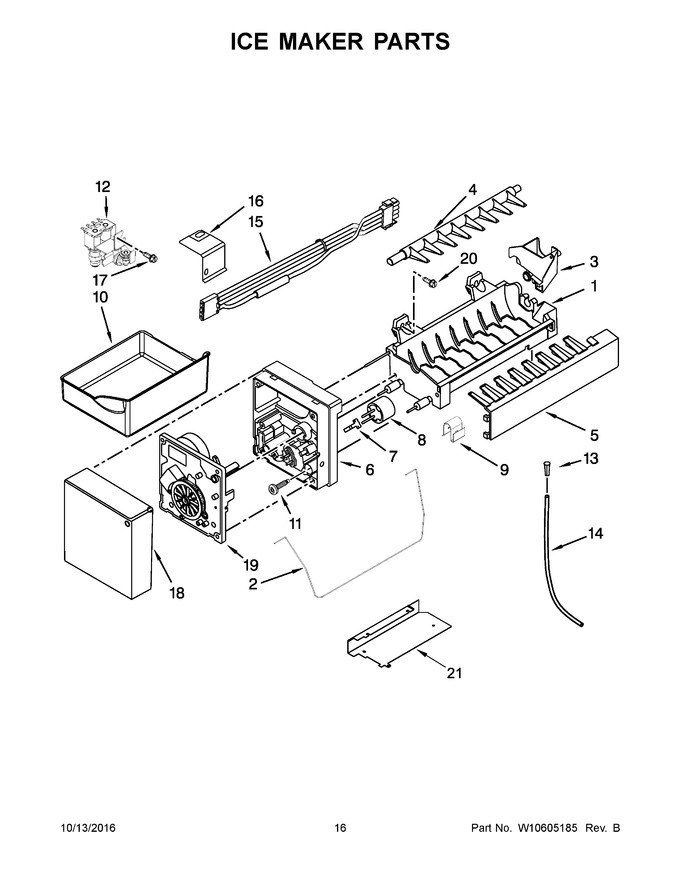

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10122523 | Mold & Heater Assembly |
|
- | |||||
| 2 | W11285509 | Arm, Shut Off (Replaces: W10202524) |
|
$ 88.83 | |||||
| 3 | W10392442 | Cup, Water Fill |
|
$ 27.65 | |||||
| 4 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 5 | W10788834 | Stripper, Ice (Replaces: W10699925) |
|
$ 76.72 | |||||
| 6 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 98.82 | |||||
| 7 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 8 | WP2321258 | Thermostat (also Order #542369) (Replaces: 2321258) |
|
$ 93.54 | |||||
| 9 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 10 | WPW10171529 | Pan, Ice (Replaces: W10740448N) |
|
Immediately | $ 170.60 | ||||
| 11 | W10001280 | Screw |
|
- | |||||
| 12 | 12544125 | Valve, Water Inlet |
|
$ 104.49 | |||||
| 13 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
$ 7.39 | |||||
| 14 | W11120581 | Tubing, Plastic (Replaces: B5705333) |
|
$ 112.44 | |||||
| 15 | W10458987 | Harness, Ice Maker |
|
- | |||||
| 16 | WP2256087 | Bracket, Icemaker (Replaces: 2256087) |
|
$ 87.89 | |||||
| 17 | WP489128 | Screw (Replaces: 12991604) |
|
$ 10.26 | |||||
| 18 | WPW10289690 | Cover, Front (Replaces: 12582501) |
|
$ 7.94 | |||||
| 19 | W10239565 | Module Assembly |
|
- | |||||
| 20 | W10001240 | Screw |
|
$ 8.30 | |||||
| 21 | D7846203 | Shield, Ice Maker |
|
- | |||||
| 100 | WPW10190972 | Icemaker Assembly (complete) (Replaces: W10190972) |
|
$ 159.74 |
