SELECT A DIAGRAM

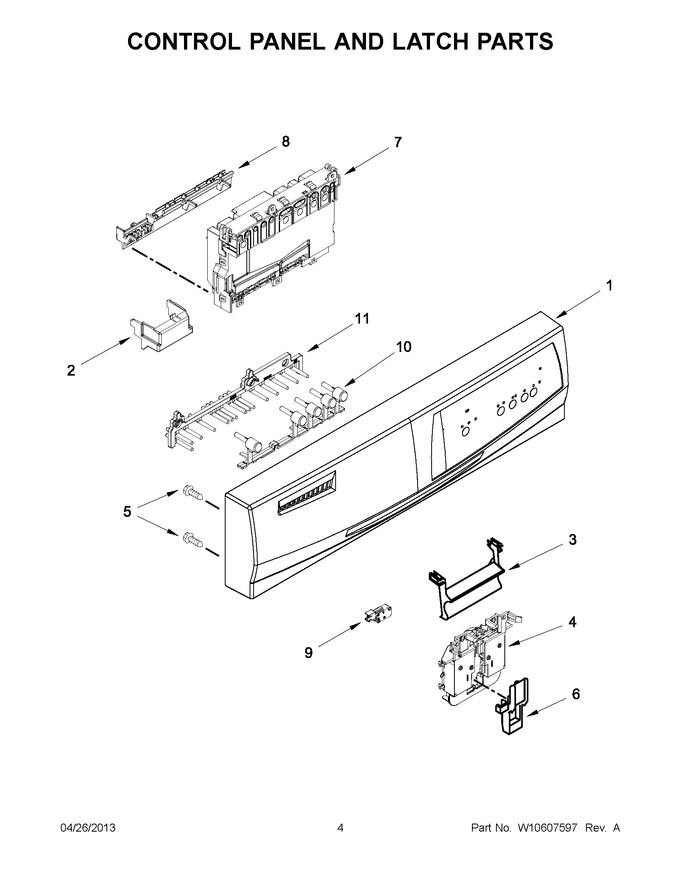

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10531892		Console Assembly (includes Insert) (black)   (Replaces: W10584827)				$ 244.88
1	W10531893		Console Assembly (includes Insert) (white)   (Replaces: W10584826)				$ 315.84
1	W10531894		Console Assembly (includes Insert) (biscuit/bisque)   (Replaces: W10584828)				$ 244.52
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 28.27
3	8534986		Handle, Latch (biscuit/bisque)				$ 80.76
3	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 114.42
3	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 117.95
4	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 112.70
5	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 7.57
6	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 100.16
7	W11039983		Control, Electronic   (Replaces: W10546453)				$ 283.45
8	WPW10372484		Brace, Connector   (Replaces: W10372484)				$ 21.03
9	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 74.60
10	WPW10274840		Button Tree   (Replaces: W10274840)				$ 17.78
11	W10854407		Light Pipe   (Replaces: W10274836)				$ 81.30

    View Diagram in Separate Window       Print Part List
