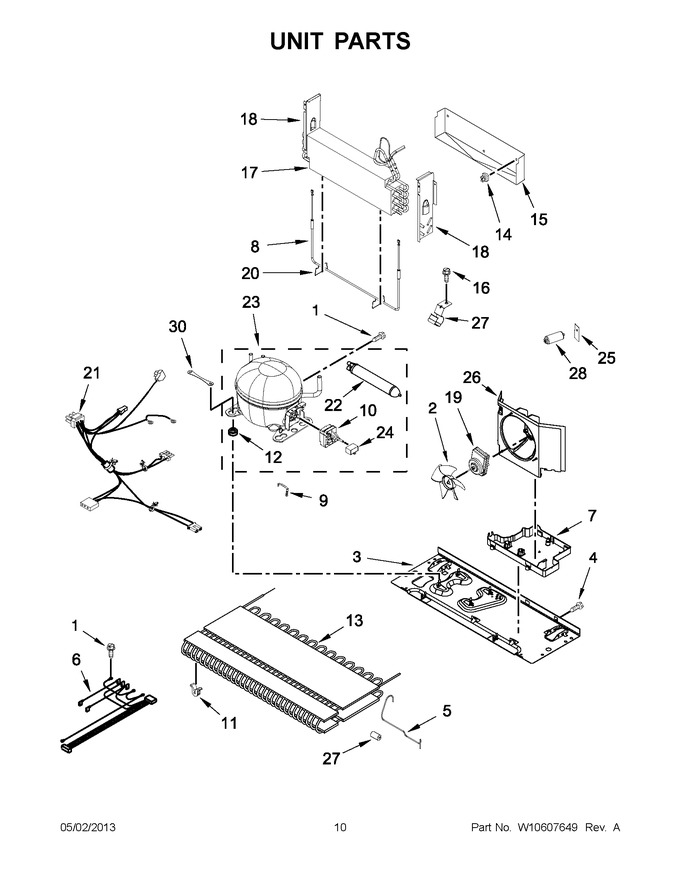

05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Ice Maker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 84.17
3	W11727651		Basepan   (Replaces: W10480111)				$ 99.50
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
5	W10392492		Tube, Discharge		Appelez-nous	-
6	W10548674		Harness, Evap. Heater		Appelez-nous	-
7	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.42
8	W10550922		Heater, Defrost		Appelez-nous	-
9	2302129		Bale Strap		Appelez-nous	-
10	W10361441		Start Protect, Combo (device, Start)		Appelez-nous	-
12	WPW10137529		Grommet, Condenser   (Replaces: W10137529)				$ 7.88
12	WPW10169124		Grommet, Compressor   (Replaces: 10835903SP)				$ 6.80
13	WPW10346420		Condenser   (Replaces: W10346420)				$ 264.92
14	10623002		Clip, Evaporator				$ 10.90
15	W11547653		Tray, Drip   (Replaces: W10292803)				$ 51.32
16	WP33001882		Screw   (Replaces: 12990701)				$ 75.34
17	W11256565		Evaporator   (Replaces: W10317014)			Immediately	$ 345.12
18	12225702		Dam (right Hand)				$ 14.09
18	12225602		Dam (left Hand)				$ 14.66
19	WPW10246191		Motor, Fan   (Replaces: W10246191)				$ 285.65
20	W11673433		Clip, Heater   (Replaces: 10428101)				$ 133.36
21	W10462018		Cord, Power		Appelez-nous	-
22	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 27.70
23	W10183407		Compressor   (Replaces: W10120455)				$ 392.05
24	2321245		Capacitor		Appelez-nous	-
25	W10217546		Bracket, Filter		Appelez-nous	-
26	W10189187		Shroud		Appelez-nous	-
27	W10281329		Clip, Drier				$ 12.36
28	W10572234		Filter, Line		Appelez-nous	-
29	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.28
30	W10236396		Strap, Compressor			Immediately	$ 18.73
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge 4.50 Oz. R-22		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
