01 - Cabinet Parts

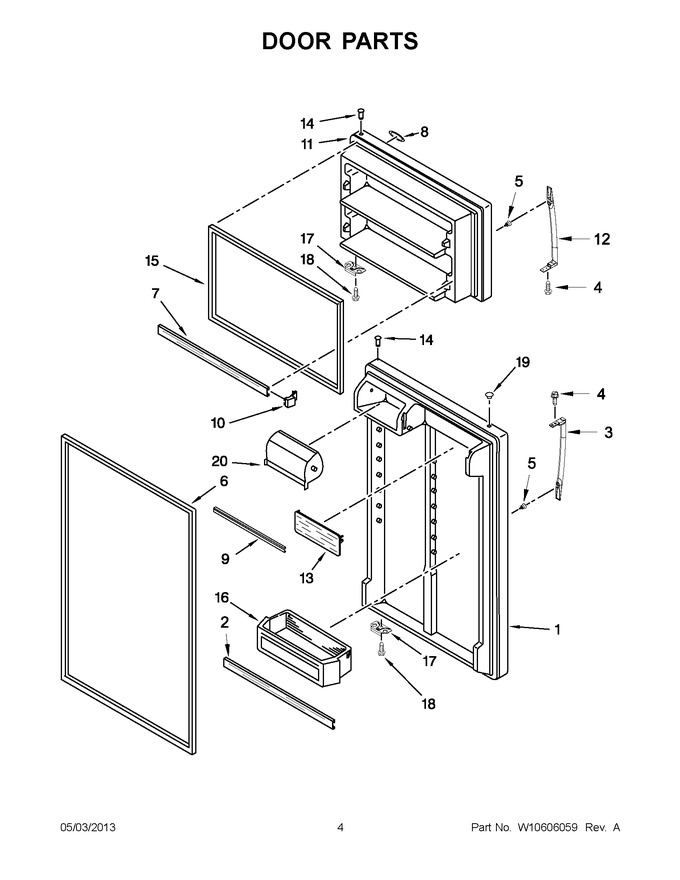

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10853404 | Refrigerator Door (includes Illus. 6) (stainless) (Replaces: W10359374) |
|
- | |||||
| 2 | WPW10421486 | Trim, Door (Replaces: W10421486) |
|
$ 103.27 | |||||
| 3 | W11026870 | Handle, Refrigerator (stainless) (Replaces: W10564292) |
|
$ 190.27 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 5 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.12 | ||||
| 6 | W10249195 | Door Gasket, Magnetic (grey) (Replaces: W10171475) |
|
$ 302.22 | |||||
| 7 | W10463315 | Trim, Door |
|
- | |||||
| 8 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 58.63 | ||||
| 9 | WP2201061 | Trim, Door (Replaces: W10421476) |
|
$ 111.89 | |||||
| 10 | WP2195916K | End Cap, Door Trim (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 11 | W10853404 | Freezer Door (includes Illus. 15) (stainless) (Replaces: W10359372) |
|
- | |||||
| 12 | W11026870 | Handle, Freezer (stainless) (Replaces: W10564293) |
|
$ 190.27 | |||||
| 13 | WP2188236 | Door, Flip (Replaces: 2188236) |
|
$ 57.94 | |||||
| 14 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 15 | W10249196 | Door Gasket, Magnetic (grey) (Replaces: W10171479) |
|
Immediately | $ 251.19 | ||||
| 16 | WP2204812 | Bin, Door (Replaces: 2204812) |
|
$ 72.41 | |||||
| 17 | W11745278 | Bracket, Door Stop (silver) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 18 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 19 | WP2254517 | Hole Plug (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 20 | W11617783 | Compartment Door (Replaces: W10385897) |
|
$ 68.65 |
