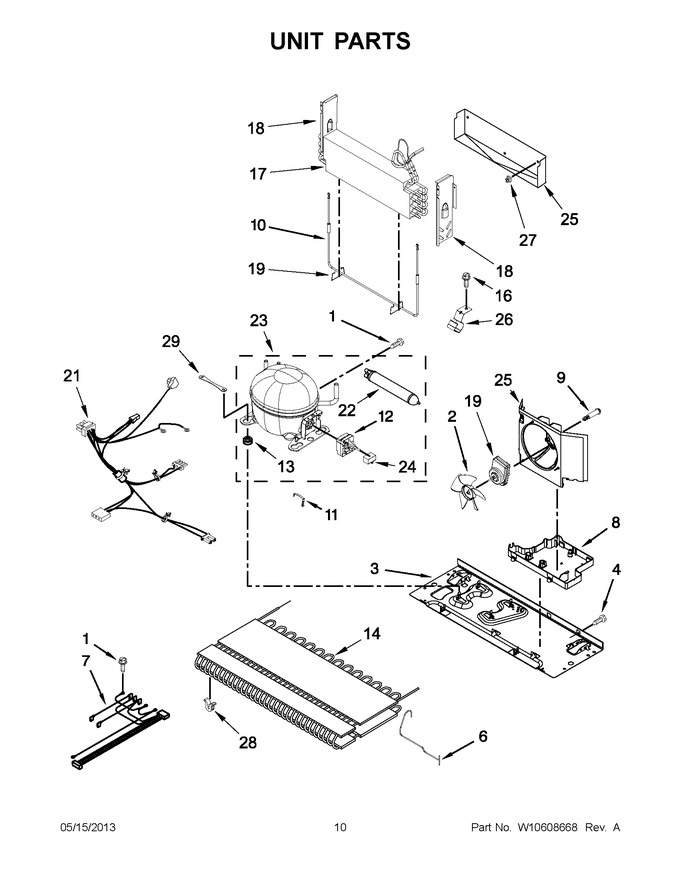

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 84.17 | ||||
| 3 | W11727651 | Basepan (Replaces: W10480111) |
|
$ 99.50 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 6 | W10392492 | Tube, Discharge |
|
- | |||||
| 7 | W10548674 | Harness, Evap. Heater |
|
- | |||||
| 8 | WPW10655368 | Pan, Drain (Replaces: W10296785) |
|
Immediately | $ 99.42 | ||||
| 9 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 10 | W10550922 | Heater, Defrost |
|
- | |||||
| 11 | 2302129 | Bale Strap |
|
- | |||||
| 12 | W10361441 | Start Protect, Combo Device, Start |
|
- | |||||
| 13 | WPW10169124 | Grommet, Compressor (Replaces: 10835903SP) |
|
$ 6.80 | |||||
| 14 | WPW10346420 | Condenser (Replaces: W10346420) |
|
$ 264.92 | |||||
| 15 | W11547653 | Tray, Drip (Replaces: W10292803) |
|
$ 51.32 | |||||
| 16 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 75.34 | |||||
| 17 | W11256565 | Evaporator (Replaces: W10317014) |
|
Immediately | $ 345.12 | ||||
| 18 | 12225702 | Dam (right Hand) |
|
$ 14.09 | |||||
| 18 | 12225602 | Dam (left Hand) |
|
$ 14.66 | |||||
| 19 | WPW10246191 | Motor, Fan (Replaces: W10246191) |
|
$ 285.65 | |||||
| 20 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 133.36 | |||||
| 21 | W10523996 | Harness, Unit |
|
- | |||||
| 22 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 27.70 | ||||
| 23 | W10183407 | Compressor (Replaces: W10120455) |
|
$ 392.05 | |||||
| 24 | 2321245 | Capacitor |
|
- | |||||
| 25 | W10189187 | Shroud |
|
- | |||||
| 26 | W10281329 | Clip, Drier |
|
$ 12.36 | |||||
| 27 | 10623002 | Clip, Evaporator |
|
$ 10.90 | |||||
| 28 | WPW10137529 | Grommet-condenser (Replaces: W10137529) |
|
$ 7.88 | |||||
| 29 | W10236396 | Strap, Compressor |
|
Immediately | $ 18.73 | ||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge 5.50 Oz. (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 |
