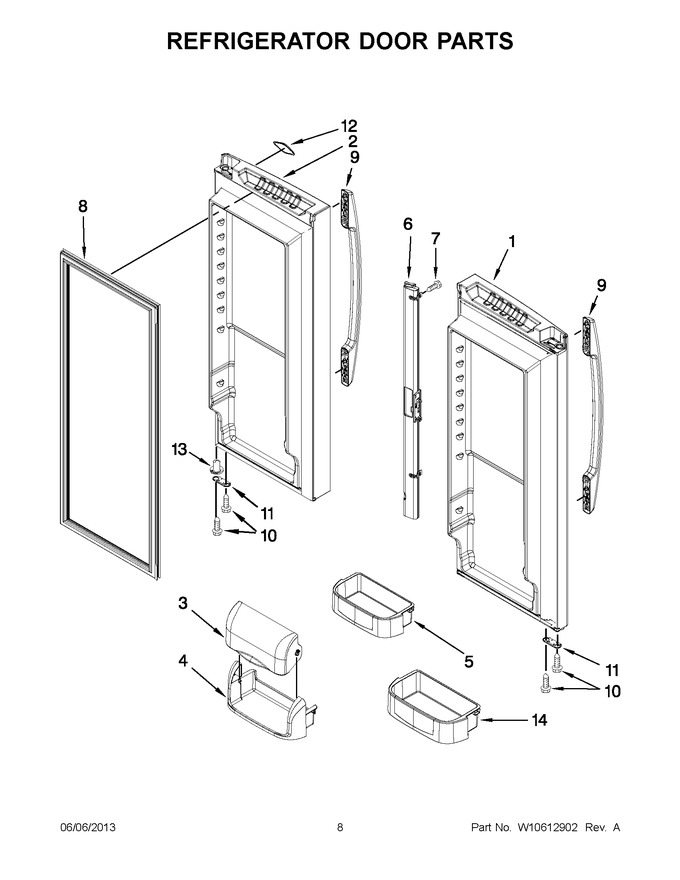

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107880FQ		Door, Left (sparkle Steel)   (Replaces: 13107880F)		Appelez-nous	-
1	13107880WQ		Door, Left (white)   (Replaces: 13107880W)		Appelez-nous	-
2	13107857FQ		Door, Right (sparkle Steel)   (Replaces: 13107857F)		Appelez-nous	-
2	13107857WQ		Door, Right (white)   (Replaces: 13107857W)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	WPW10371193		Bucket (medium)   (Replaces: W10371193)			Immediately	$ 70.97
6	12732507W		Mullion, Door (white)		Appelez-nous	-
6	12732507AP		Mullion, Door (grey)		Appelez-nous	-
7	W11311945		Screw   (Replaces: 12990204)				$ 13.25
8	W10830162		Gasket, Door (grey)   (Replaces: W10571956)			Immediately	$ 223.74
8	W10830189		Gasket, Door (white)   (Replaces: W10571959)				$ 255.07
9	WPW10252284A		Handle, Door (white)   (Replaces: W10252284N)				$ 68.65
9	W10252288A		Handle, Door (stainless)   (Replaces: W10252288N)				$ 116.87
10	WP98165		Screw   (Replaces: 12990504)				$ 7.71
11	W11703060		Stop, Door (grey)   (Replaces: 12968202AP)				$ 13.91
11	12968202W		Stop, Door (white)				$ 62.36
12	66981-5		Nameplate (white)		Appelez-nous	-
12	66981-7		Nameplate (stainless)		Appelez-nous	-
13	WP12028505AP		Closure, Door (grey)   (Replaces: 12028505AP)			Immediately	$ 55.31
13	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.34
14	W10289496		Bucket, Gallon				$ 35.05
