01 - Top And Cabinet Parts
02 - Door Parts

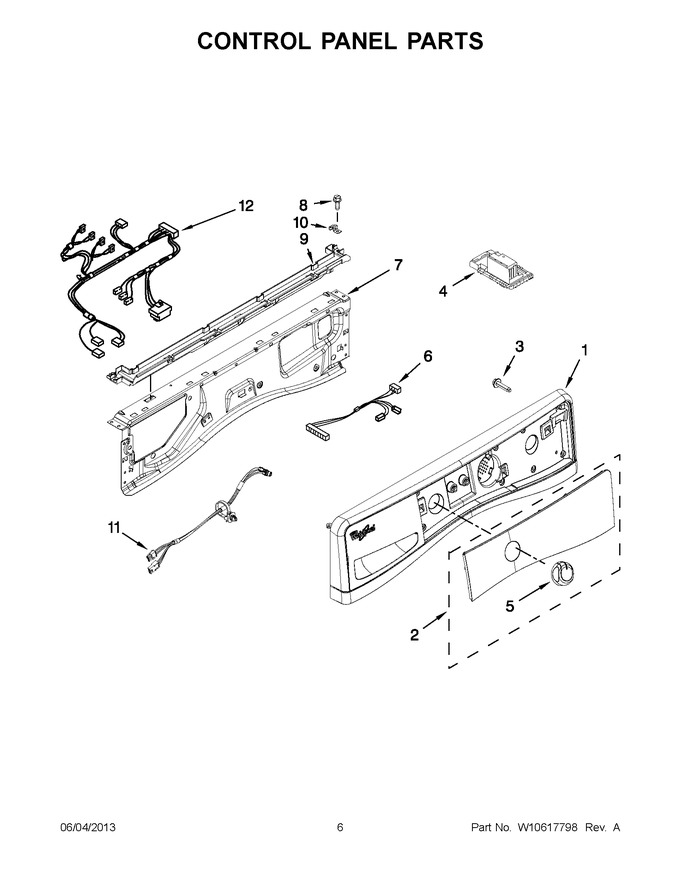

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10858319 | Assembly, Console (silver) (Replaces: W10503134) |
|
$ 348.14 | |||||
| 2 | WPW10570749 | Assembly, Iml (silver) (Replaces: W10570749) |
|
$ 814.97 | |||||
| 3 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 4 | W10422889 | Control Unit, Central |
|
$ 347.35 | |||||
| 5 | W10391535 | Knob Assembly |
|
$ 25.18 | |||||
| 6 | W10486221 | Harness, Ui Jumper |
|
- | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | W10485684 | Harness, Led Ui |
|
$ 25.92 | |||||
| 12 | W10422437 | Harness, Wiring (upper Main) |
|
- |
