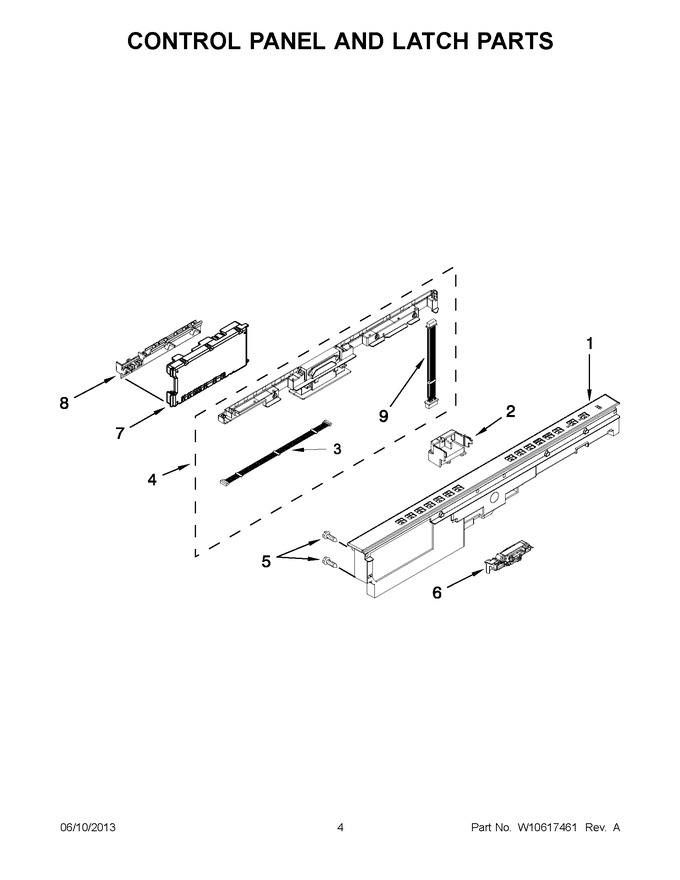

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10380063 | Console Assembly (black) (Replaces: W10350246) |
|
$ 252.56 | |||||
| 1 | WPW10380064 | Console Assembly (white) (Replaces: W10350247) |
|
$ 201.27 | |||||
| 1 | WPW10380065 | Console Assembly (silver) (Replaces: W10350248) |
|
$ 210.11 | |||||
| 2 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 28.27 | |||||
| 3 | W10347251 | Jumper, 10-wire |
|
$ 10.46 | |||||
| 4 | WPW10629158 | Housing, User Interface (Replaces: W10350265) |
|
$ 297.60 | |||||
| 5 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.22 | ||||
| 6 | W10619006 | Latch Assembly (includes Switch) (Replaces: W10550100) |
|
Immediately | $ 35.18 | ||||
| 7 | W10597041 | Control, Electronic (Replaces: W10539780) |
|
$ 285.91 | |||||
| 8 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 27.50 | |||||
| 9 | W10300781 | Jumper, 16-wire |
|
$ 29.88 |
