01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Internal Oven Parts

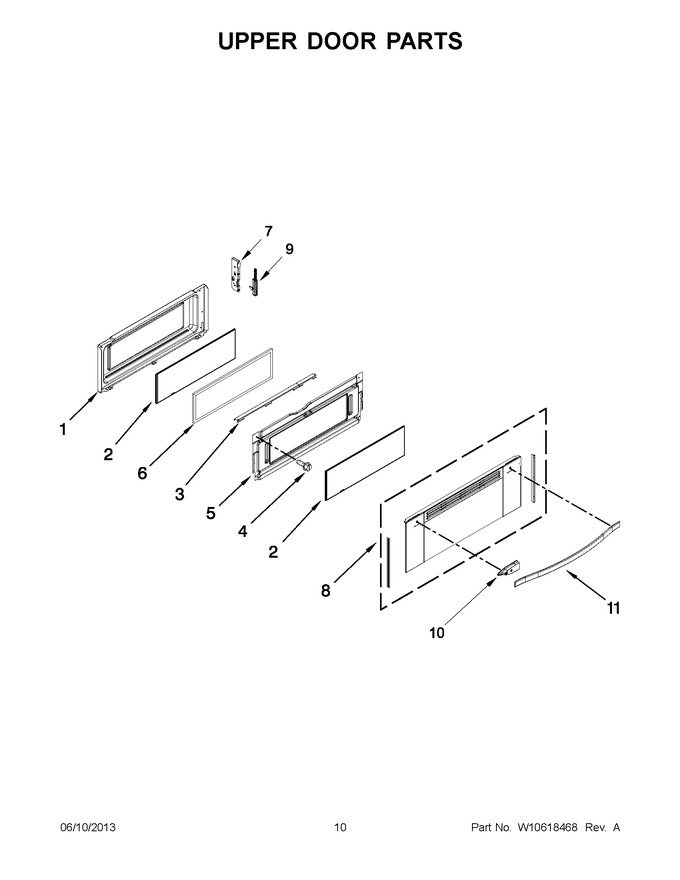

05 - Upper Door Parts
06 - Lower Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11051040 | Lining, Door (Replaces: W10485720) |
|
$ 270.90 | |||||
| 2 | W11132120 | Glass, Inner (Replaces: W10272707) |
|
$ 161.40 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 154.74 | |||||
| 4 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 5 | W10485723 | Retainer, Insulation |
|
$ 227.18 | |||||
| 6 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 89.26 | |||||
| 7 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 8 | W10677218 | Assembly, Door Glass (stainless) (Replaces: W10519554) |
|
$ 386.99 | |||||
| 8 | W10677221 | Assembly, Door Glass (white Ice) (Replaces: W10540433) |
|
$ 340.16 | |||||
| 9 | WPW10485733 | Hinge, Door (left) (Replaces: W10485733) |
|
Immediately | $ 57.88 | ||||
| 9 | WPW10485732 | Hinge, Door (right) (Replaces: W10485732) |
|
Immediately | $ 50.18 | ||||
| 10 | WPW10429492 | Standoff, Handle (white) (Replaces: W10429492) |
|
Immediately | $ 20.77 | ||||
| 10 | WPW10410341 | Standoff, Handle (stainless) (Replaces: W10410341) |
|
$ 72.68 | |||||
| 11 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 171.80 |
