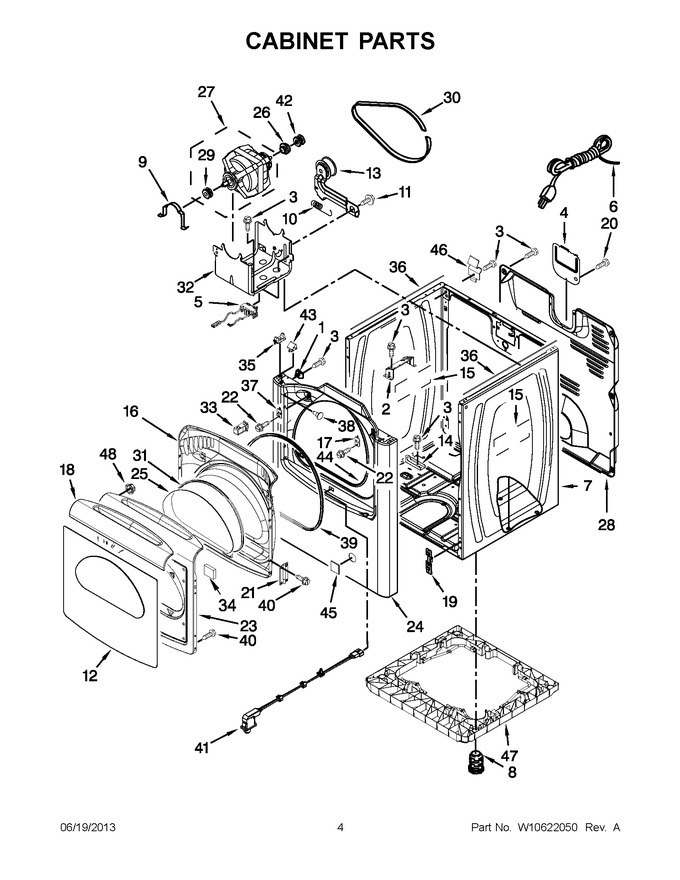

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 10.76
2	8544753		Bracket, Burner Support		Appelez-nous	-
3	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
4	W11736322		Plate, Cover Terminal Block   (Replaces: 8558833)		Appelez-nous	-
5	WPW10411937		Switch, Broken Belt   (Replaces: W10411937)			Immediately	$ 32.45
6	W11222083		Cord, Power   (Replaces: W10440460)				$ 113.96
7	W10223154		Cabinet (white)   (Replaces: W10183827)				$ 318.94
8	W10813918		Foot, Dryer   (Replaces: W10363894)			Immediately	$ 12.33
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
12	8578931		Window, Outer Door				$ 164.08
13	WPW10547292		Assembly, Idler   (Replaces: W10547292)			Immediately	$ 39.58
14	W10201446		Bracket, Gas Pipe		Appelez-nous	-
15	W10123956		Panel, Dampening		Appelez-nous	-
16	8571357		Door, Inner				$ 143.15
17	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 26.72
18	WPW10402478		Handle, Door Cover   (Replaces: W10402478)				$ 192.33
19	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 14.71
20	W10850756		Screw   (Replaces: 8533974)				$ 7.38
21	WP8565018		Hinge, Spring Assembly (white)   (Replaces: 8565018)				$ 103.81
22	WP3400805		Screw   (Replaces: 3400805)				$ 6.80
23	8571365		Door, Outer (white)				$ 70.67
24	WPW10463262		Panel, Front (white)   (Replaces: W10463262)				$ 326.39
25	8558846		Glass, Inner Door				$ 120.50
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
27	WPW10448896		Assembly, Motor (60 Hertz)   (Replaces: W10396036)			Immediately	$ 308.78
28	W10140148		Panel, Rear				$ 139.84
29	8544743		Pulley, Blower				$ 74.26
30	WP8547157		Belt, Drive   (Replaces: 8547157)			Immediately	$ 58.91
31	W10076050		Seal, Window				$ 109.49
32	8547158		Bracket, Motor				$ 65.31
33	WPW10111905		Assembly, Door Catch   (Replaces: W10111905)			Immediately	$ 6.83
34	3389682		Spacer, Toe Panel				$ 8.31
35	WP8568303		Locator, Snap-down   (Replaces: 8568303)				$ 7.15
36	WPW10157932		Seal, Foam   (Replaces: W10316529)			Immediately	$ 7.61
37	W10295405		Assembly, Strike & Plate   (Replaces: W10111906)				$ 103.58
38	W10144494		Plug, Hole				$ 35.14
39	W10239307		Seal, Door   (Replaces: W10221653)				$ 127.14
40	WP488627		Screw   (Replaces: 342055)				$ 7.30
41	WPW10350907		Assembly, Door Switch   (Replaces: W10350907)				$ 81.14
42	WP8547171		Pulley, Motor   (Replaces: 8547171)				$ 134.69
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 6.84
44	W10044490		Seal, Front Panel				$ 30.65
45	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 14.85
46	WP8066217		Hinge, Top   (Replaces: 238088)				$ 7.39
47	W10363887		Riser, Full		Appelez-nous	-
48	WP308499		Palnut   (Replaces: 308499)				$ 6.57
