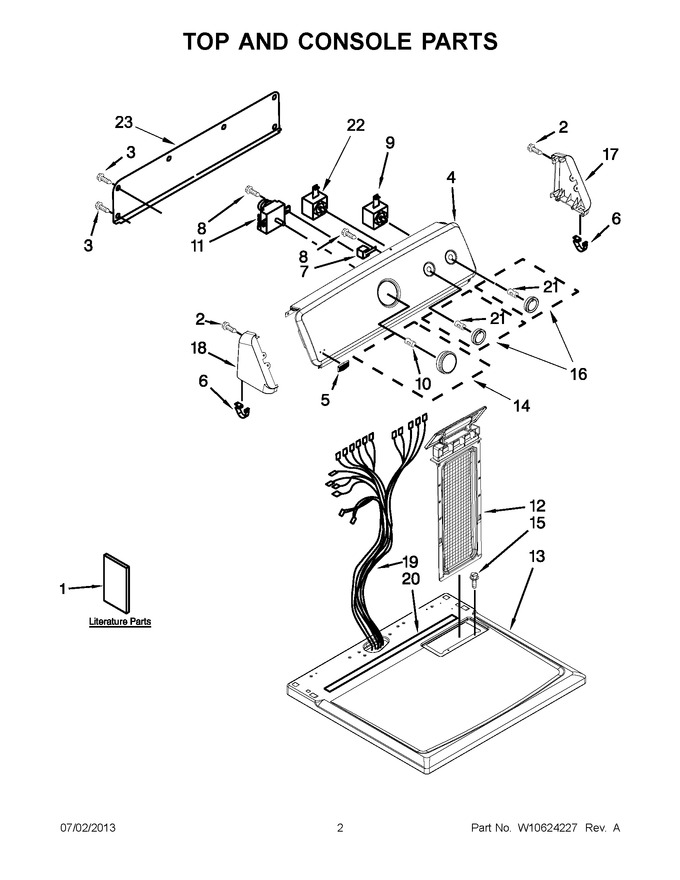

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562360		Installation Instructions		Appelez-nous	-
1	W10562354		Use And Care Guide		Appelez-nous	-
1	W10185986		Wiring Diagram		Appelez-nous	-
2	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W10557256		Console Assembly (white)				$ 140.22
5	W10199708		Badge				$ 47.95
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
9	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 80.89
10	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
11	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 170.80
12	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 49.17
13	WPW10225059		Top (white)   (Replaces: W10225059)				$ 225.62
14	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 16.95
15	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
16	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 16.95
17	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 67.25
18	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 66.95
19	W10577882		Harness, Main		Appelez-nous	-
20	W10316616		Seal, Foam				$ 25.01
21	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
22	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
23	W10103406		Panel, Rear (console)				$ 121.78
