Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10596235 Use & Care Guide, English/french Appelez-nous -
1 W10501738 Installation Instructions Appelez-nous -
1 W10490712 Energy Guide Appelez-nous -
1 W10455257 Tech Sheet, English Appelez-nous -
1 W10455258 Tech Sheet, French Appelez-nous -
2 W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 128.02

2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 128.15

3 W10850371 Vapor Barrier Assembly   (Replaces: W10321447) In-Stock Immediately $ 29.59

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 6.80

5 W10871196 Toe Panel (black)   (Replaces: 8558252) Special Order $ 156.64

6 W10409495 Panel, Front (stainless) Special Order $ 202.84

7 W10276608 Screw, Set Special Order $ 42.06

8 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 7.36

9 W10409496 Handle Assembly (stainless) Special Order $ 121.76

10 WP8564951 Stud, Mounting   (Replaces: 8564951) In-Stock Immediately $ 17.40

11 W10319007 Light, Pipe Special Order $ 64.80

12 W10831329 Insulation, Toe Panel   (Replaces: W10385107) In-Stock Immediately $ 38.97

13 W11126003 Insulation, Front Panel   (Replaces: W10315897) In-Stock Immediately $ 58.73

14 W11116870 Bracket, Control Panel   (Replaces: W10194911) Special Order $ 80.96

15 WP3400071 Screw   (Replaces: 3400071) In-Stock Immediately $ 7.43

16 WPW10214168 Nameplate (stainless)   (Replaces: W10214168) Special Order $ 77.36

17 W10831329 Insulation, Three Layer   (Replaces: W10350437) In-Stock Immediately $ 38.97

18 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 38.03

19 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 10.09

20 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.56


    View Diagram in Separate Window     Print Icon   Print Part List

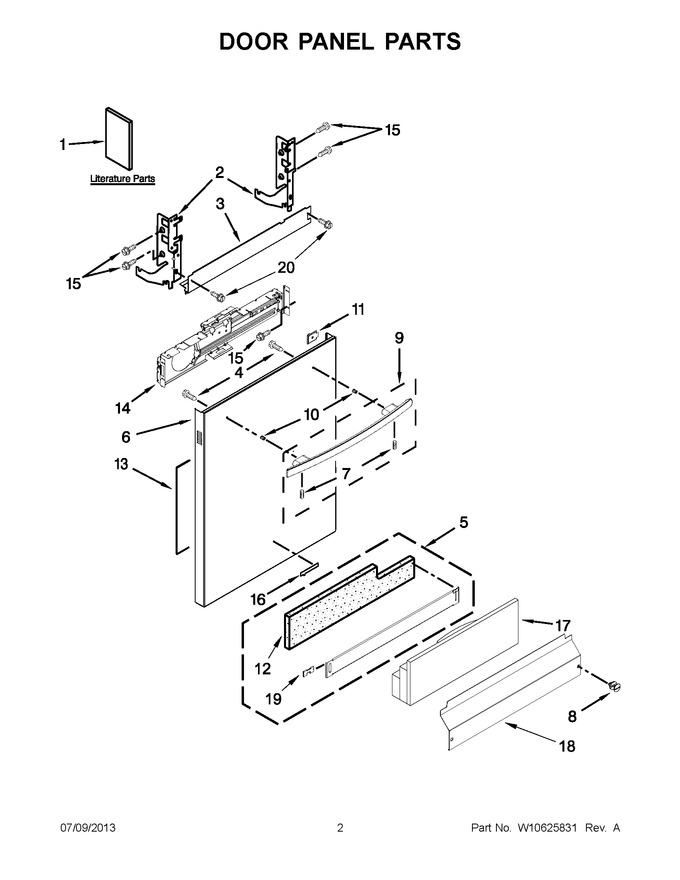

Diagram for JDB8700AWS2
