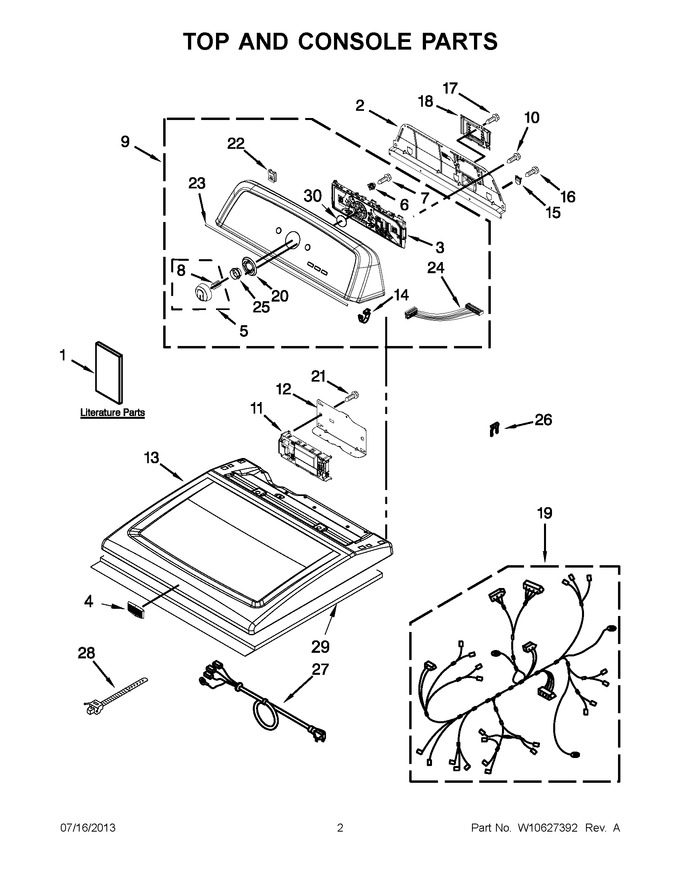

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10417013 | Tech Sheet |
|
- | |||||
| 1 | W10096989 | Guide, Use & Care |
|
- | |||||
| 1 | W10253978 | Wiring Diagram |
|
- | |||||
| 1 | W10514185 | Installation Instructions |
|
- | |||||
| 2 | W10550615 | Panel, Rear Console |
|
$ 105.15 | |||||
| 3 | WPW10272643 | Assembly, User Interface (Replaces: W10272643) |
|
$ 303.49 | |||||
| 4 | W10492808 | Badge |
|
$ 53.84 | |||||
| 5 | WPW10251381 | Assembly, Control Knob (silver) (Replaces: W10251381) |
|
$ 52.77 | |||||
| 6 | W10274524 | Tensioner, Fascia |
|
- | |||||
| 7 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 8 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 9 | W10293247 | Assembly, Console (white) |
|
$ 328.53 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 11 | WPW10317638 | Control, Electronic (Replaces: W10317638) |
|
$ 310.19 | |||||
| 12 | W10271580 | Bracket, Motor Control |
|
- | |||||
| 13 | WPW10268730 | Top (white) (Replaces: W10268730) |
|
$ 311.27 | |||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 15 | W10279552 | Plug, Upper Rear Panel |
|
- | |||||
| 16 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 17 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 7.43 | ||||
| 18 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 121.29 | |||||
| 19 | W10253984 | Harness, Wiring |
|
$ 108.06 | |||||
| 20 | W10305134 | Bezel, Cycle Trim |
|
$ 23.73 | |||||
| 21 | 8533917 | Screw |
|
$ 12.64 | |||||
| 22 | W11213336 | Nut, ``u`` (Replaces: W10298336) |
|
$ 7.32 | |||||
| 23 | W10280079 | Seal, Console |
|
- | |||||
| 24 | W10285494 | Cable, User Interface |
|
- | |||||
| 25 | W10326923 | Spacer, Knob |
|
- | |||||
| 26 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 27 | W11095079 | Cord, Power (Replaces: 8579325) |
|
Immediately | $ 124.42 | ||||
| 28 | 3405248 | Tie, Cable |
|
- | |||||
| 29 | W10123956 | Panel, Dampening |
|
- | |||||
| 30 | W10323092 | Seal, User Interface |
|
- |
