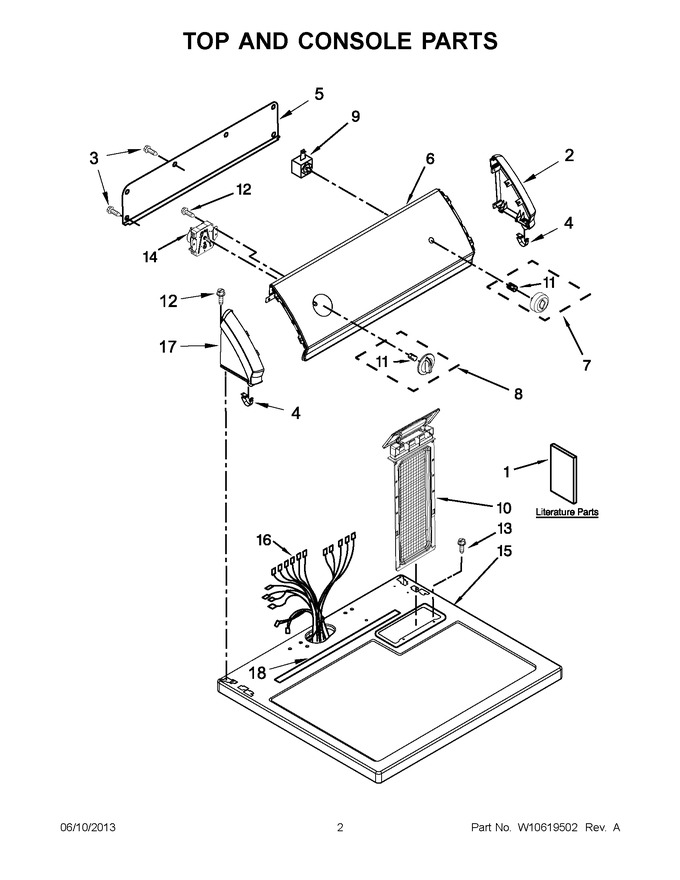

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10348336 | Wiring Diagram |
|
- | |||||
| 1 | W10514172 | Installation Instructions |
|
- | |||||
| 1 | W10096992 | Use & Care Guide |
|
- | |||||
| 2 | WP8559501 | End Cap (right) (white) (Replaces: 8559501) |
|
$ 65.49 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 15.66 | ||||
| 5 | W10103406 | Panel, Rear (Replaces: 8274261) |
|
$ 121.78 | |||||
| 6 | W10536504 | Panel, Control |
|
- | |||||
| 7 | W10317459 | Knob, Push To Start (grey) |
|
- | |||||
| 8 | W10317457 | Assembly, Timer Knob (grey) |
|
- | |||||
| 9 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 25.18 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | WP8299779 | Timer, 60 Hz. (Replaces: 8299779) |
|
Immediately | $ 345.33 | ||||
| 15 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 16 | W10278756 | Harness, Wiring |
|
- | |||||
| 17 | WP8559502 | End Cap (left) (white) (Replaces: 8559502) |
|
$ 65.69 | |||||
| 18 | W10316616 | Seal, Foam |
|
$ 25.01 |
