View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts

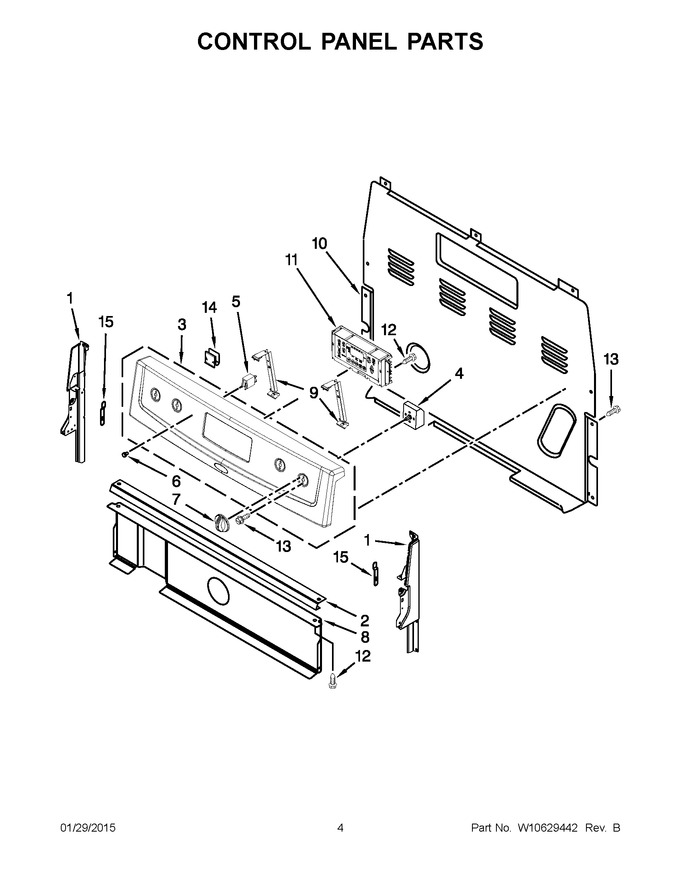

03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 3 | W10572572 | Panel, Control (white) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Front And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP9761962 | Knob, Infinite (white) (Replaces: 9761962) |
|
Immediately | $ 18.59 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | WPW10572540 | Control, Electronic (white) (Replaces: W10626965) |
|
$ 329.93 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 13 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8273564 | Clip, Rear Upper Cover (Replaces: 8273564) |
|
$ 11.39 | |||||
| 15 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 11A | WPW10626966 | Control, Electronic (black) (Replaces: W10626966) |
|
$ 295.24 | |||||
| 1A | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1B | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1C | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 3A | W10572574 | Panel, Control (black) |
|
- | |||||
| 3B | WPW10572577 | Panel, Control (stainless) (Replaces: W10572577) |
|
$ 301.19 | |||||
| 4A | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 4B | WPW10434452 | Switch, Infinite (left Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 7A | WP9761964 | Knob, Infinite (black) (Replaces: 9761964) |
|
Immediately | $ 20.07 |
