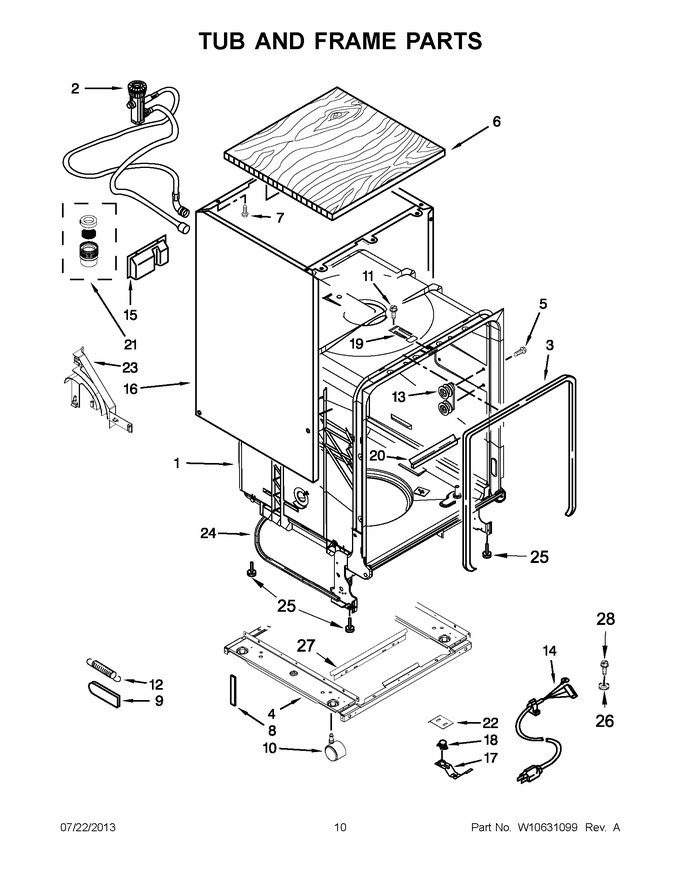

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10266934 | Tub Assembly (includes Heater Assembly) |
|
$ 557.25 | |||||
| 2 | W10842407 | Coupler Assembly (Replaces: W10354998) |
|
Immediately | $ 231.27 | ||||
| 3 | W11768590 | Seal, Tub (Replaces: W10524469) |
|
Immediately | $ 29.48 | ||||
| 4 | W10254984 | Frame Assembly (Replaces: 8559928) |
|
$ 156.36 | |||||
| 5 | W10817436 | Screw (Replaces: W10341745) |
|
Immediately | $ 7.33 | ||||
| 6 | WP3373199 | Panel-top (Replaces: 3373199) |
|
$ 355.77 | |||||
| 7 | WP681414 | Screw (Replaces: 304428) |
|
Immediately | $ 7.62 | ||||
| 8 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 6.01 | ||||
| 9 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 44.42 | ||||
| 10 | WP8559933 | Caster (Replaces: 8559933) |
|
Immediately | $ 93.14 | ||||
| 11 | W10165274 | Screw |
|
$ 12.12 | |||||
| 12 | WPW10337934 | Spring, Door Balance (Replaces: W10337934) |
|
Immediately | $ 32.71 | ||||
| 13 | WP8270016 | Wheel And Mount Assembly (Replaces: 8270016) |
|
$ 79.96 | |||||
| 14 | W10831279 | Cord-power (Replaces: W10219671) |
|
$ 136.12 | |||||
| 15 | W10219673 | Housing, Hose |
|
- | |||||
| 16 | W10356267 | Shell Assembly (white) |
|
- | |||||
| 16 | W10356266 | Shell Assembly (black) |
|
- | |||||
| 17 | W10539489 | Clip, Thermostat |
|
$ 18.13 | |||||
| 18 | WP661566 | Thermostat (Replaces: W10339474) |
|
Immediately | $ 28.15 | ||||
| 19 | WP8580309 | Strike, Latch (Replaces: 8580309) |
|
Immediately | $ 89.96 | ||||
| 20 | W10219682 | Protector, Edge Divider |
|
$ 94.26 | |||||
| 20 | W10254751 | Protector, Edge (short) |
|
$ 69.52 | |||||
| 21 | WPW10254672 | Adapter, Faucet (Replaces: W10254672) |
|
Immediately | $ 49.54 | ||||
| 22 | W10321574 | Shield, Thermostat (Replaces: W10339699) |
|
$ 23.25 | |||||
| 23 | 3378109 | Saddle, Hose |
|
- | |||||
| 24 | WPW10271702 | Support, Bottom (Replaces: W10271702) |
|
$ 99.30 | |||||
| 25 | 8193716 | Leveler, Leg (Replaces: W10304228) |
|
$ 80.06 | |||||
| 26 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 10.63 | |||||
| 27 | W10328716 | Bar, Blocker |
|
- | |||||
| 28 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 7.42 |
