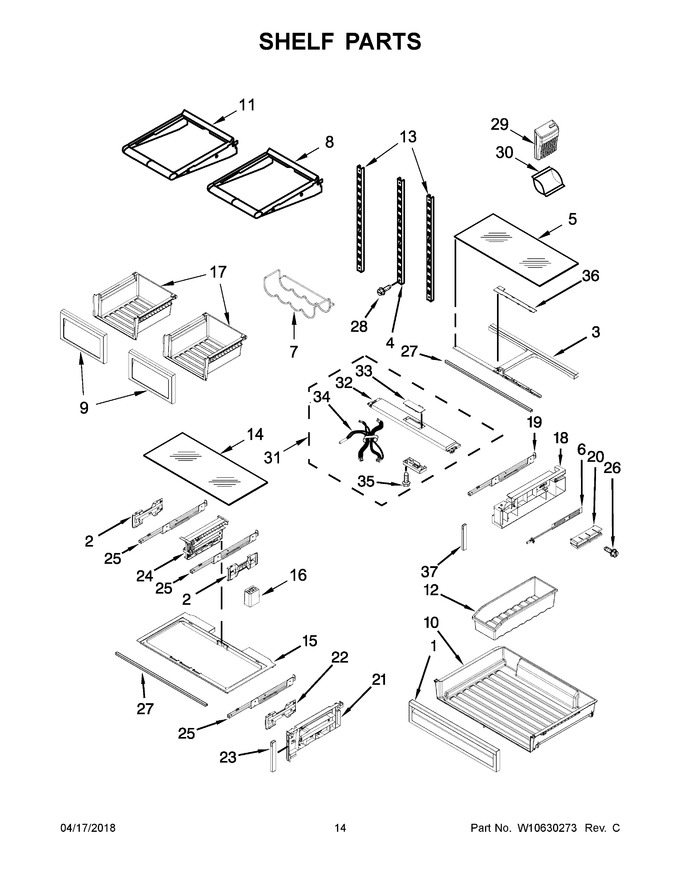

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11034025 | Front, Pantry (Replaces: W10510429) |
|
Immediately | $ 254.34 | ||||
| 2 | W10530317 | Plate, Slide Center |
|
$ 13.75 | |||||
| 3 | WPW10489978 | Support, Pantry (Replaces: W10489978) |
|
$ 50.62 | |||||
| 4 | W10467461 | Ladder, Center |
|
Immediately | $ 47.08 | ||||
| 5 | WPW10248799 | Glass, Pantry (Replaces: W10248799) |
|
$ 202.57 | |||||
| 6 | W10342618 | Heater, Pantry |
|
$ 79.25 | |||||
| 7 | W10413979 | Rack, Wine |
|
$ 137.51 | |||||
| 8 | W10734034 | Assembly, Shelf |
|
- | |||||
| 9 | WPW10550026 | Front, Crisper (Replaces: W10550026) |
|
Immediately | $ 106.98 | ||||
| 10 | WPW10654844 | Pan, Pantry (Replaces: W10654844) |
|
Immediately | $ 135.50 | ||||
| 11 | W10493521 | Shelf, Full |
|
$ 124.36 | |||||
| 12 | W10467369 | Divider, Pantry |
|
$ 24.81 | |||||
| 13 | W11690684 | Ladder, Side (Replaces: W10372170) |
|
$ 45.56 | |||||
| 14 | WPW10248578 | Glass, Crisper (Replaces: W10248578) |
|
$ 298.54 | |||||
| 15 | W10717570 | Cover, Crisper |
|
$ 178.52 | |||||
| 16 | W10530315 | Support, Crisper |
|
$ 15.30 | |||||
| 17 | W10919809 | Pan, Crisper (Replaces: W10624433) |
|
$ 142.99 | |||||
| 18 | WPW10498906 | Plate, Side Pantry (left Hand) (Replaces: W10498906) |
|
$ 118.84 | |||||
| 19 | W10499289 | Slide, Pantry (left Hand) |
|
$ 319.27 | |||||
| 20 | W10432697 | Insulation, Sideplate |
|
$ 13.17 | |||||
| 21 | W11315181 | Plate, Crisper (left Hand) (Replaces: W10530318) |
|
$ 72.12 | |||||
| 22 | W10530316 | Plate, Side |
|
$ 24.69 | |||||
| 23 | W10467415 | Plate, Crisper Front |
|
$ 65.06 | |||||
| 24 | W10530307 | Track, Center |
|
$ 80.34 | |||||
| 25 | W11233912 | Slide, Crisper (Replaces: W10248819) |
|
$ 255.99 | |||||
| 26 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 27 | WPW10236512 | Support, Front (Replaces: W10236512) |
|
$ 120.65 | |||||
| 28 | W10423560 | Screw |
|
- | |||||
| 29 | WPW10408747 | Holder, Filter (Replaces: W10408747) |
|
$ 29.35 | |||||
| 30 | W10346771 | Filter, Produce Preserver |
|
- | |||||
| 31 | W11048823 | Cover, Front (includes Led Assembly) (Replaces: W10668852) |
|
$ 307.83 | |||||
| 32 | W10248837 | Cover, Top |
|
- | |||||
| 33 | W10807593 | Assembly, User Interface (Replaces: W10668848) |
|
$ 405.32 | |||||
| 34 | W10668847 | Harness, Wire (includes Thermistor) |
|
$ 136.26 | |||||
| 35 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 36 | W10490266 | Support, Pantry Cover (includes Gasket) |
|
$ 78.62 | |||||
| 37 | W10467416 | Plate, Pantry Front |
|
$ 34.43 | |||||
| 18A | WPW10498902 | Plate, Side Pantry (right Hand) (Replaces: W10498902) |
|
$ 62.48 | |||||
| 19A | W11759682 | Slide, Pantry (right Hand) (Replaces: W10499294) |
|
$ 62.90 | |||||
| 21A | W11315180 | Plate, Crisper (right Hand) (Replaces: W10530306) |
|
$ 22.46 |
