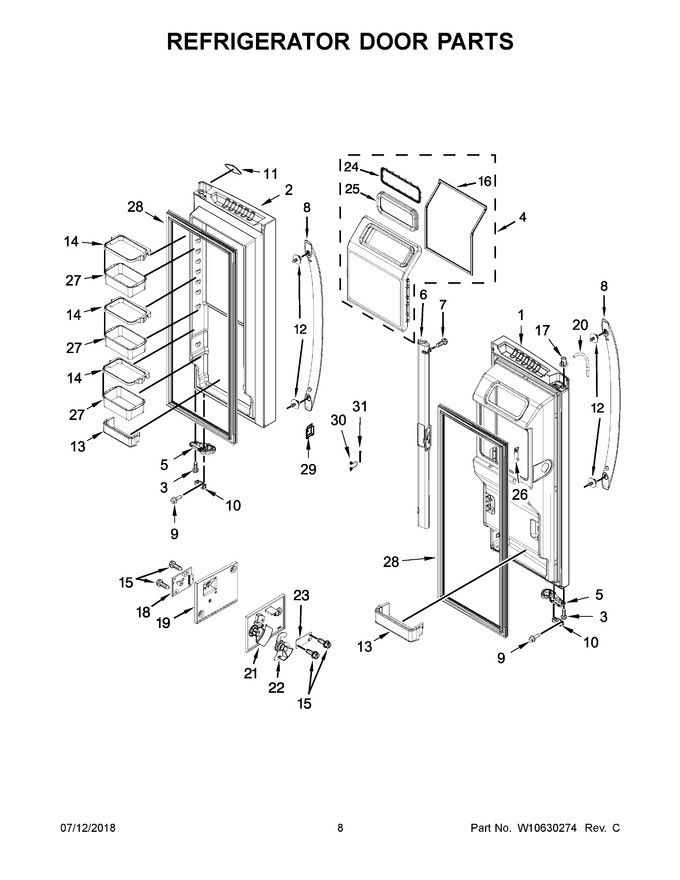

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10577009 | Door, Left (stainless) (Replaces: W10577009) |
|
$ 1,385.96 | |||||
| 2 | LW10564036 | Door, Right (stainless) (Replaces: W10564036) |
|
$ 1,151.55 | |||||
| 3 | WPW10464016 | Screw (Replaces: W10464016) |
|
$ 11.65 | |||||
| 4 | W11399564 | Door, Ice (Replaces: W10564705) |
|
Immediately | $ 284.00 | ||||
| 5 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 16.24 | |||||
| 6 | W10849525 | Mullion, Door (grey) (Replaces: W10698201) |
|
$ 140.06 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | WPW10557401 | Handle, Door (stainless) (Replaces: W10557401) |
|
$ 286.47 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 21.02 | ||||
| 11 | WPW10427988 | Nameplate (grey) (Replaces: W10427988) |
|
$ 67.54 | |||||
| 12 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 13 | W10468069 | Trivet, 2 Liter |
|
$ 57.04 | |||||
| 14 | WPW10447153 | Frame, Bin (Replaces: W10447153) |
|
$ 224.89 | |||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 12.41 | |||||
| 16 | W11625019 | Gasket, Ice Door (Replaces: W10567561) |
|
$ 46.55 | |||||
| 17 | W10562834 | Clip, Tube |
|
$ 14.09 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 296.07 | ||||
| 19 | W10563326 | Cover, Receiver |
|
$ 20.48 | |||||
| 20 | W10394073 | Tube, Water |
|
$ 113.63 | |||||
| 21 | W10563309 | Cover, Emitter |
|
$ 24.62 | |||||
| 22 | W10563328 | Slide, Icemaker Shut Off |
|
$ 208.58 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 205.25 | ||||
| 24 | W11504381 | Retainer, Ice Chute (Replaces: W10562839) |
|
$ 14.53 | |||||
| 25 | W11706282 | Gasket, Ice Chute (Replaces: W10567563) |
|
$ 114.71 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646867) |
|
Immediately | $ 20.84 | ||||
| 27 | WPW10248856 | Bucket, Gallon (Replaces: W10248856) |
|
Immediately | $ 75.09 | ||||
| 28 | W10407212 | Gasket, Door (grey) (Replaces: W10873938) |
|
Immediately | $ 296.27 | ||||
| 29 | W10563323 | Door, Emitter |
|
$ 121.92 | |||||
| 30 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 82.29 | |||||
| 31 | W10331749 | Pin, Door |
|
- | |||||
| 5A | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 15.83 |
