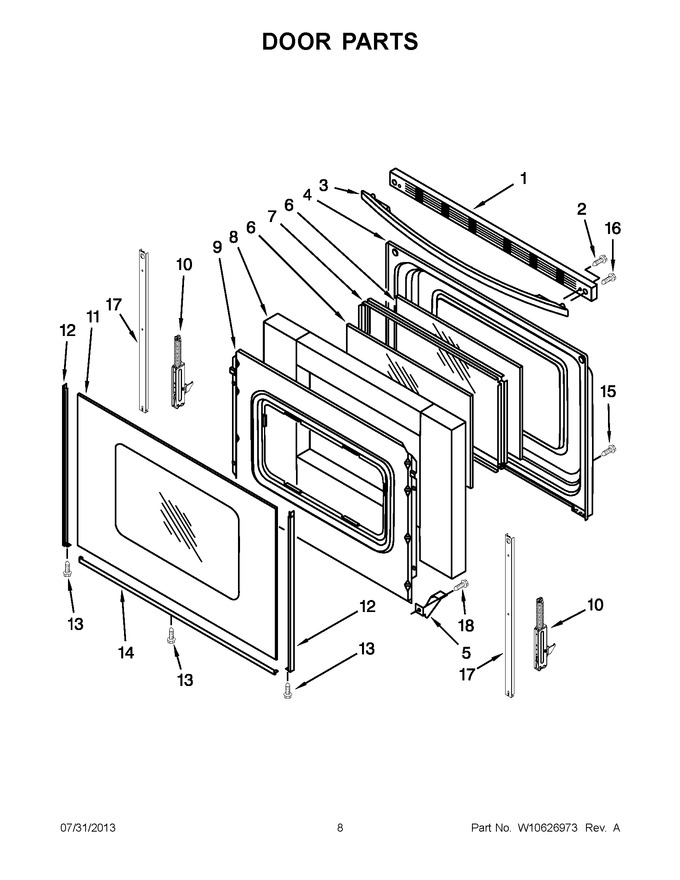

04 - Door Parts
05 - Drawer And Broiler Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 157.83 | ||||
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 162.27 | ||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | W10817434 | Handle, Door (white) (Replaces: W10323588) |
|
Immediately | $ 211.34 | ||||
| 3 | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 227.39 | |||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10323589) |
|
Immediately | $ 252.10 | ||||
| 4 | 9761340 | Liner-door |
|
$ 325.01 | |||||
| 5 | W10137382 | Clip, Glass |
|
Immediately | $ 43.58 | ||||
| 6 | WP9758164 | Glass, Inner (Replaces: 9758164) |
|
$ 143.94 | |||||
| 7 | W10316951 | Frame, Window (glass) |
|
- | |||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 9 | 9761499 | Retainer, Insulation |
|
$ 292.80 | |||||
| 10 | WPW10299224 | Hinge, Door Active (Replaces: W10299224) |
|
Immediately | $ 66.14 | ||||
| 10 | WPW10299227 | Hinge, Door Passive (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 11 | WP9762477 | Glass, Outer (black) (Replaces: 9762477) |
|
$ 297.11 | |||||
| 11 | WP9762476 | Glass, Outer (white) (Replaces: 9762476) |
|
$ 299.39 | |||||
| 12 | W10761014 | Trim, Side (black, Right Hand) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | WP8523172 | Trim, Side (white, Left Hand) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12 | WP8523166 | Trim, Side (white, Right Hand) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | W10761018 | Trim, Side (black, Left Hand) (Replaces: 8523171) |
|
Immediately | $ 49.32 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
$ 149.27 | |||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 16 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 17 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 24.91 | ||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 |
