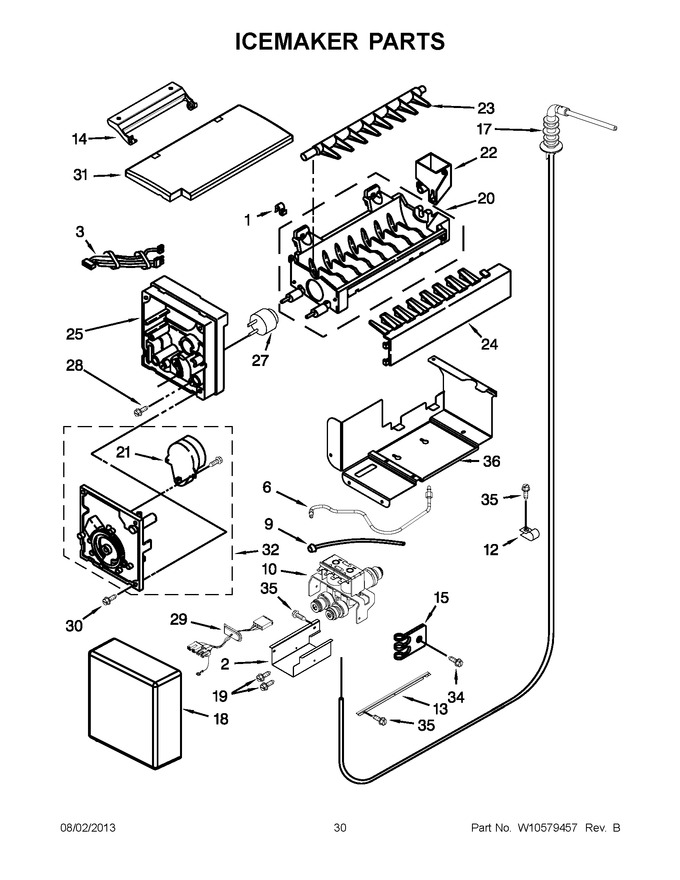

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP628379 |
 |
Clip, Thermal Fuse (Replaces: 628379) |
|
|
|
$ 9.99 |
|
|
| 2 |
2320601 |
|
Shield, Water Valve |
|
|
|
$ 108.14 |
|
|
| 3 |
W10508659 |
|
Assembly, Icemaker Wire |
|
|
|
$ 120.77 |
|
|
| 6 |
W11565275 |
 |
Tube, Filter Inlet (Replaces: W10296807) |
|
|
|
$ 61.10 |
|
|
| 9 |
W11533506 |
 |
Tube, Filter Outlet (Replaces: W10437853) |
|
|
|
$ 29.84 |
|
|
| 10 |
WPW10159842 |
 |
Valve, Solenoid (Replaces: W10159842) |
|
|
Immediately |
$ 302.40 |
|
|
| 12 |
W10833902 |
|
Clamp, Tube (Replaces: 2221070) |
|
|
|
$ 10.39 |
|
|
| 13 |
2320559 |
|
Support, Valve |
|
|
|
$ 79.91 |
|
|
| 14 |
WP2198641 |
 |
Bracket, Ice Maker Cover (Replaces: 2198641) |
|
|
|
$ 6.80 |
|
|
| 15 |
WP488366 |
 |
Clip, Water Tube (Replaces: 2208136) |
|
|
|
$ 10.73 |
|
|
| 17 |
W11212166 |
 |
Fitting, Water (Replaces: W10357286) |
|
|
Immediately |
$ 36.84 |
|
|
| 18 |
WPW10289690 |
 |
Cover, Icemaker (Replaces: W10289690) |
|
|
|
$ 7.94 |
|
|
| 19 |
WPW10141604 |
|
Screw (Replaces: W10141604) |
|
|
|
$ 7.97 |
|
|
| 20 |
WPW10190929 |
 |
Assembly, Mold And Heater (Replaces: W10122527) |
|
|
|
$ 210.17 |
|
|
| 21 |
N/P |
|
Motor, (not Serviceable Order Item 32) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
WPW10272168 |
 |
Cup-water Fill (Replaces: W10272168) |
|
|
|
$ 68.83 |
|
|
| 23 |
WP627843 |
 |
Ejector (Replaces: 627843) |
|
|
|
$ 79.00 |
|
|
| 24 |
WPW10272161 |
|
Stripper, Ice (Replaces: W10272161) |
|
|
|
$ 65.54 |
|
|
| 25 |
WP2195914 |
 |
Support, Housing (Replaces: 2194712) |
|
|
|
$ 98.82 |
|
|
| 27 |
WP627985 |
 |
Thermostat (Replaces: W10290336) |
|
|
|
$ 103.18 |
|
|
| 28 |
W10001280 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 29 |
W10279391 |
|
Wire Assembly, Smart Valve |
|
|
|
$ 120.77 |
|
|
| 30 |
WP681249 |
 |
Screw (Replaces: 489276) |
|
|
Immediately |
$ 7.43 |
|
|
| 31 |
WPW10504754 |
 |
Cover, Icemaker (Replaces: W10504754) |
|
|
|
$ 85.68 |
|
|
| 32 |
8201515 |
 |
Assembly, Module (Replaces: W10223929) |
|
|
Immediately |
$ 143.80 |
|
|
| 34 |
WPW10141645 |
|
Screw (Replaces: W10141645) |
|
|
|
$ 7.25 |
|
|
| 35 |
WP489069 |
 |
Screw (Replaces: 1157158) |
|
|
Immediately |
$ 7.56 |
|
|
| 36 |
2252228 |
|
Bracket, Icemaker Mounting |
|
Appelez-nous
|
- |
|
|
|
| 100 |
WPW10277448 |
 |
Complete Icemaker Assembly (Replaces: W10277448) |
|
|
Immediately |
$ 263.46 |
|
|
| NI |
W10355016 |
|
Ss Cleaner |
|
Appelez-nous
|
- |
|
|
|
| NI |
W10355049 |
|
Ss Cleaning Wipes |
|
|
|
$ 7.91 |
|
|
| NI |
REFDEODOR |
|
Deodorizer Pack |
|
Appelez-nous
|
- |
|
|
|
| NI |
W10355010 |
|
Kitchen And Appliance Cleaner |
|
Appelez-nous
|
- |
|
|
|
| NI |
N/P |
|
Following Parts Not Illustrated |
|
Appelez-nous
|
- |
|
|
|
View Diagram in Separate Window
Print Part List
