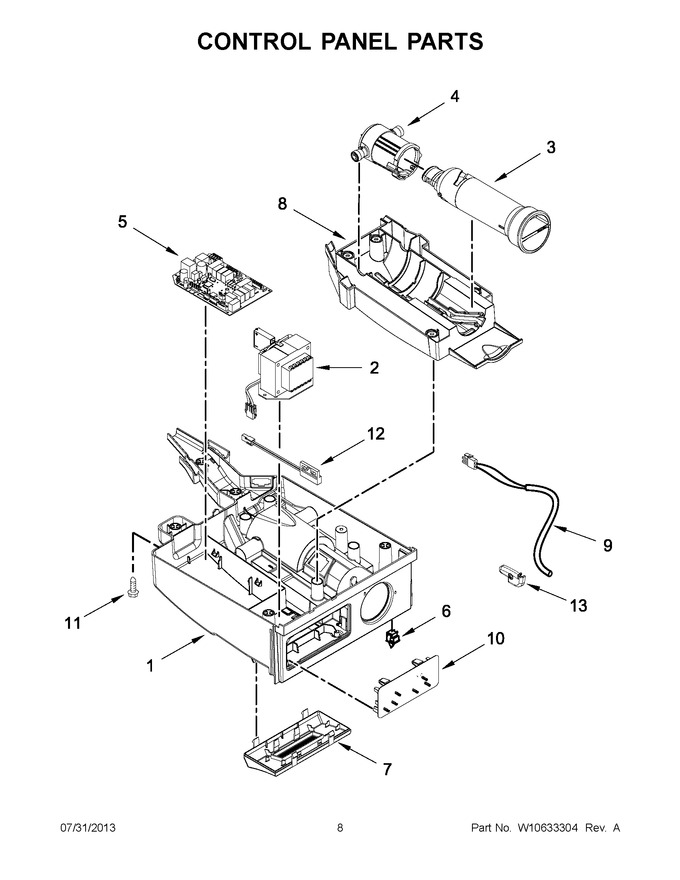

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10477560 | Housing, Control |
|
- | |||||
| 2 | WPW10485951 | Transformer (Replaces: W10485951) |
|
$ 309.29 | |||||
| 3 | W10480323 | Cartridge, Filter |
|
- | |||||
| 4 | W11266112 | Assembly, Water Filter Housing (Replaces: W10555394) |
|
$ 204.20 | |||||
| 5 | W11034363 | Control, Electronic (Replaces: W10485960) |
|
Immediately | $ 402.01 | ||||
| 6 | W11291138 | Switch-rocker (Replaces: 12466104) |
|
Immediately | $ 33.00 | ||||
| 7 | W10492487 | Assembly, Diamond Led |
|
$ 263.31 | |||||
| 8 | W10475416 | Cover, Filter |
|
$ 110.21 | |||||
| 9 | WPW10511923 | Thermistor, Bin (Replaces: W10511923) |
|
Immediately | $ 70.07 | ||||
| 10 | WPW10500734 | Assembly, Control (Replaces: W10500734) |
|
$ 246.80 | |||||
| 11 | WP3400884 | Screw (stainless) (Replaces: 3400884) |
|
$ 7.29 | |||||
| 12 | W11171663 | Switch, Reed (Replaces: W10485964) |
|
$ 30.13 | |||||
| 13 | W10526623 | Clamp, Thermistor |
|
- |
