01 - Cover Sheet


02 - Top And Cabinet Parts

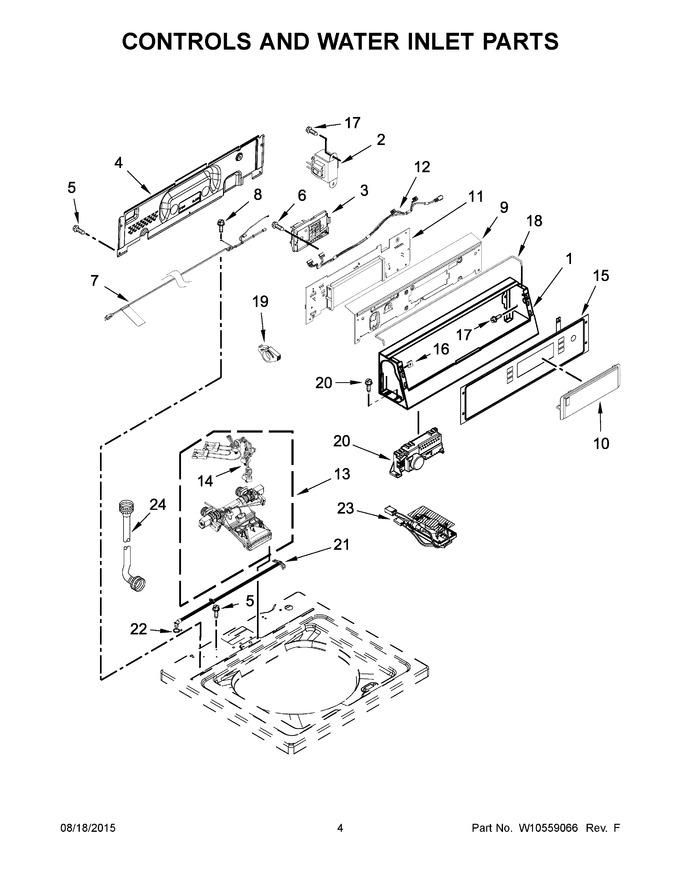

03 - Controls And Water Inlet Parts


04 - Meter Case Parts


05 - Basket And Tub Parts


06 - Gearcase, Motor And Pump Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10461094		Console				$ 167.97
2	W10751202		Transformer, 240-22.5 Vac   (Replaces: W10633921)				$ 202.81
3	W10884155		Control Unit Assembly, Machine & Motor   (Replaces: W10491729)				$ 191.80
4	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
5	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
6	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
7	W10520399		Cord, Power		Appelez-nous	-
8	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
9	W11243296		Back Bracket, Control Panel   (Replaces: W10698212)		Appelez-nous	-
10	W11637765		Cover, Display   (Replaces: W10267645)				$ 62.63
11	WPW10647075		User Interface   (Replaces: W10647075)				$ 236.48
12	W11241226		Harness, Upper   (Replaces: W10567153)		Appelez-nous	-
13	W11179242		Inlet Assembly, Water   (Replaces: W10514372)			Immediately	$ 202.62
14	W10520396		Harness, Valve		Appelez-nous	-
15	W11173601		Fascia   (Replaces: W10506029)		Appelez-nous	-
16	WPW10131123		Nut, "u   (Replaces: W10131123)				$ 7.29
17	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
18	WPW10157932		Seal, Foam   (Replaces: W10157932)			Immediately	$ 7.61
19	WPW10663966		Clamp, Hose   (Replaces: W10348582)				$ 201.83
20	WPW10482834		Electronic Release Module   (Replaces: W10482834)			Immediately	$ 289.63
21	WPW10461189		Assembly, Hose   (Replaces: W10461189)				$ 30.32
22	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 7.94
23	W11173655		Line Filter Assembly   (Replaces: W10540623)		Appelez-nous	-
24	WPW10489643		Hose, Water Inlet (hot)   (Replaces: W10489643)				$ 73.67
24A	WPW10489648		Hose, Water Inlet (cold)   (Replaces: W10489648)				$ 72.87
NI	W11384794		10a Cord Adaptor (austrailian)   (Replaces: W10476818)		Appelez-nous	-
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 25.24
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 72.81
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
