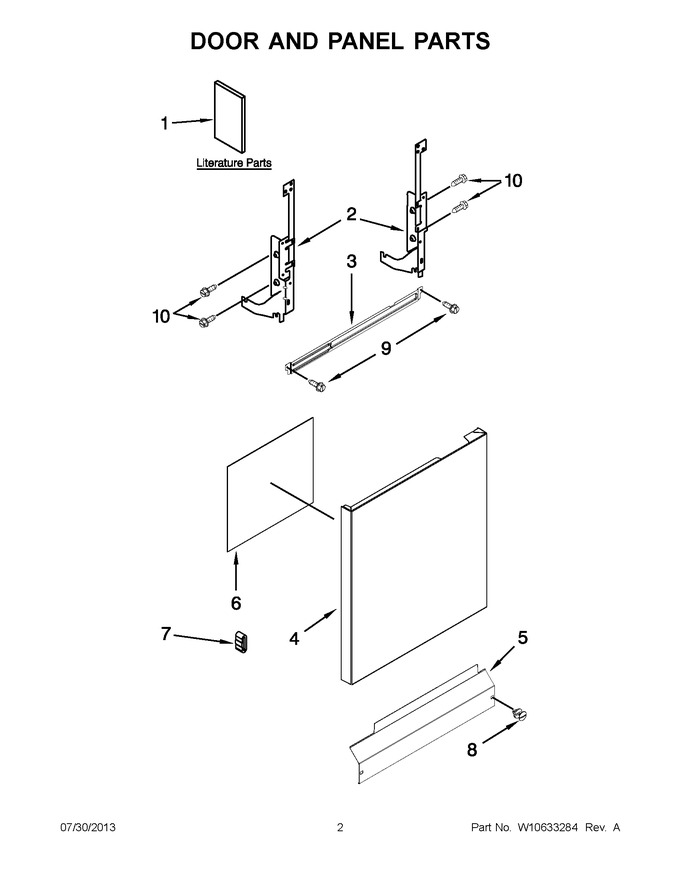

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10461430		Tech Sheet (french)		Appelez-nous	-
1	W10380392		Installation, Instructions		Appelez-nous	-
1	W10508932		Energy Guide		Appelez-nous	-
1	W10596251		Use & Care Guide		Appelez-nous	-
1	W10461429		Tech Sheet (english)		Appelez-nous	-
2	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 75.54
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 64.59
3	W10850371		Stiffener, Door   (Replaces: W10195120)			Immediately	$ 29.59
4	WPW10274895		Panel Front (black)   (Replaces: W10274895)				$ 368.87
5	WPW10441013		Access Panel (black)   (Replaces: W10441013)				$ 125.94
6	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 86.61
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 6.01
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 27.35
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 7.92
