SELECT A DIAGRAM

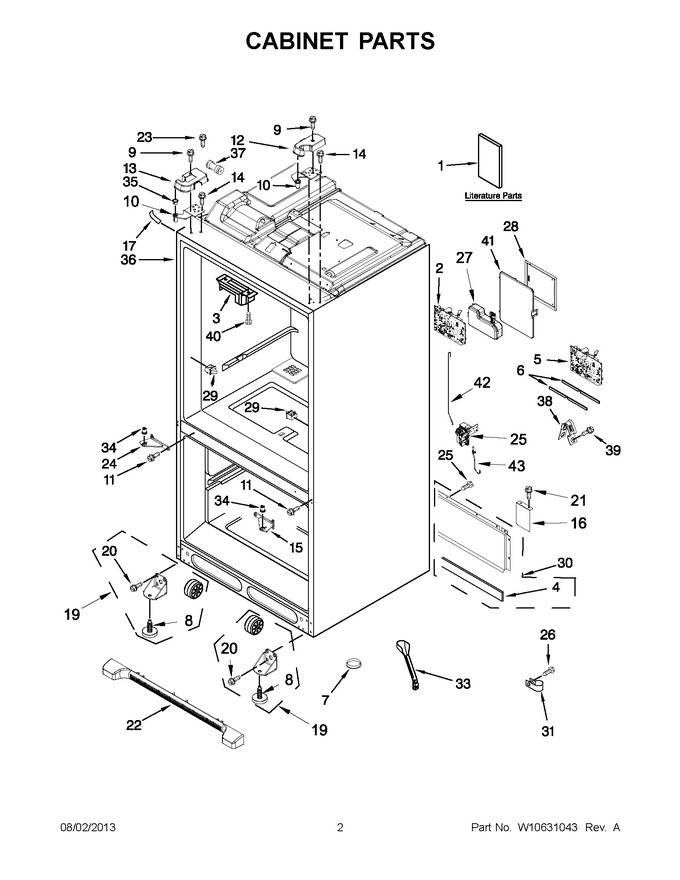

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Motor And Ice Container Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10591246		Tech Sheet		Appelez-nous	-
1	W10446589		Guide, Energy		Appelez-nous	-
1	W10537976		Use & Care Guide		Appelez-nous	-
2	WPW10453401		Power Supply   (Replaces: W10453401)			Immediately	$ 222.40
3	WPW10344432		Block, Pivot   (Replaces: W10344432)			Immediately	$ 17.24
4	W10505487		Gasket				$ 25.81
5	WPW10589837		Board, Control   (Replaces: W10589837)			Immediately	$ 408.00
6	W10415341		Gasket, Hv Box				$ 33.30
7	A3076901		Plug, Button				$ 5.70
8	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.42
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 6.80
10	W11592404		Hinge, Top (right Hand)   (Replaces: W10248409)				$ 23.31
10	W11592405		Hinge, Top (left Hand)   (Replaces: W10248410)				$ 29.08
11	W10403211		Screw (black)				$ 70.50
11	W10403208		Screw (white)				$ 12.64
11	W11573362		Screw (grey)   (Replaces: W10403212)				$ 13.25
12	W10248562		Cover, Right Hinge (white)		Appelez-nous	-
12	WPW10407158		Cover, Right Hinge (grey)   (Replaces: W10407158)				$ 20.68
12	W10407157		Cover, Right Hinge (black)				$ 20.75
13	W10471617		Cover, Left Hinge (black)				$ 21.72
13	WPW10471618		Cover, Left Hinge (grey)   (Replaces: W10471618)				$ 22.74
13	W10471615		Cover, Left Hinge (white)				$ 20.70
14	WPW10308751		Screw, Black   (Replaces: W10308751)				$ 7.96
15	W10248433		Hinge, Center (rt) (white)				$ 76.80
15	W11240748		Hinge, Center (rt) (grey)   (Replaces: W10248703)				$ 70.84
15	W10407275		Hinge, Center (rt) (black)   (Replaces: W10248702)				$ 71.95
16	W10336736		Cover, Roller		Appelez-nous	-
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 19.93
17	12587703W		Cover, Corner (white)				$ 20.61
17	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 7.26
19	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 33.62
19	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 33.62
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.34
21	WP33001882		Screw   (Replaces: 12990701)				$ 75.34
22	WPW10637669		Grille, Toe (black)   (Replaces: W10485161)				$ 120.89
22	WPW10637671		Grille, Toe (grey)   (Replaces: W10485164)			Immediately	$ 129.11
22	WPW10637668		Grille, Toe (white)   (Replaces: W10485160)				$ 125.08
23	W11214483		Screw   (Replaces: 12992601)			Immediately	$ 13.25
24	W10407279		Hinge, Center (lt) (black)   (Replaces: W10248705)				$ 74.33
24	W10878115		Hinge, Center (lt) (grey)   (Replaces: W10248706)			Immediately	$ 69.17
24	W10248434		Hinge, Center (lt) (white)				$ 76.37
25	W10865826		Valve, Water   (Replaces: W10394076)			Immediately	$ 72.84
26	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
27	WPW10306786		Supply, Power Led   (Replaces: W10421948)			Immediately	$ 287.42
28	WPW10485658		Cover, Control Box   (Replaces: W10485658)				$ 74.73
29	W11396033		Switch, Light   (Replaces: 12466105)			Immediately	$ 33.57
30	W11482027		Cover-back   (Replaces: W10544171)			Immediately	$ 109.22
31	W11456069		Clamp-tube   (Replaces: M0108107)			Immediately	$ 20.16
33	W10503562		Tube, Drain				$ 24.25
34	WPW10505294		Coupler, Door   (Replaces: W10505294)				$ 11.90
35	W10212137		Retainer, Door				$ 12.32
36	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
37	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 33.29
38	549193		Clamp, Power Cord				$ 12.65
39	WPW10141645		Screw   (Replaces: W10141645)				$ 7.25
40	W10854958		Screw   (Replaces: 12990302)				$ 7.11
41	W10277839		Lid, Hv				$ 66.52
42	W11308813		Tube-water   (Replaces: W10277931)			Immediately	$ 111.90

    View Diagram in Separate Window       Print Part List
