01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10307147 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

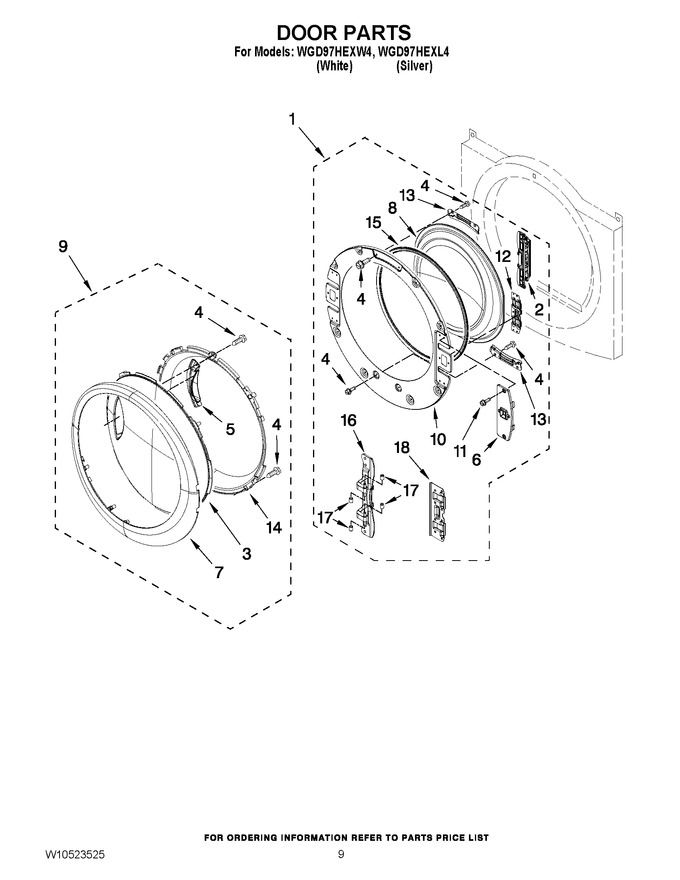

| 1 | W10208266 | Door, Inner Assembly |
|
$ 301.80 | |||||
| 2 | W11051465 | Door Hinge Assembly (Replaces: W10208414) |
|
Immediately | $ 100.03 | ||||
| 3 | W10208270 | Door, Outer Screen |
|
$ 167.71 | |||||
| 4 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 5 | W10208411 | Door Handle |
|
$ 80.71 | |||||
| 6 | W10772469 | Cover, Door Switch (Replaces: W10208413) |
|
$ 76.83 | |||||
| 7 | W10772471 | Door, Trim Ring (Replaces: W10208271) |
|
$ 269.63 | |||||
| 8 | W11310036 | Door Glass (Replaces: W10208417) |
|
$ 202.34 | |||||
| 9 | W10208268 | Door, Outer Assembly |
|
$ 222.33 | |||||
| 10 | W10267837 | Door, Inner Assembly |
|
$ 188.98 | |||||
| 11 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 12 | WPW10208254 | Door Catch Assembly (Replaces: W10208254) |
|
$ 76.81 | |||||
| 13 | W10208252 | Bracket, Glass (upper) |
|
- | |||||
| 14 | W10208269 | Bracket, Glass (lower) |
|
- | |||||
| 15 | WPW10208254 | Seal, Glass (Replaces: W10208254) |
|
$ 76.81 | |||||
| 16 | WPW10208415 | Hinge Base (Replaces: W10208415) |
|
Immediately | $ 119.99 | ||||
| 17 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 19.32 | ||||
| 18 | WPW10208419 | Plate, Hinge Retainer (Replaces: W10208419) |
|
Immediately | $ 77.35 |
