Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319111 Support, Backguard (black (right Hand)) Special Order $ 43.80

1 W10319110 Support, Backguard (white (left Hand)) Special Order $ 86.36

1 W10319112 Support, Backguard (white (right Hand)) Special Order $ 84.41

1 W10319109 Support, Backguard (black (left Hand)) Special Order $ 83.56

2 W10296773 Cover, Backguard Special Order $ 175.07

3 WPW10318552 Console (white)   (Replaces: W10318552) In-Stock Immediately $ 254.22

3 WPW10318551 Console (black)   (Replaces: W10318551) Special Order $ 245.17

3 WPW10318550 Console (stainless)   (Replaces: W10318550) Special Order $ 245.91

4 WP98008544 Screw (white)   (Replaces: 7101P636-60) Special Order $ 12.48

4 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 16.74

5 W10539963 Control Mrc2 Appelez-nous -
6 W10278697 Shield, Vent In-Stock Immediately $ 165.00

7 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 6.80

8 WPW10531229 Assembly, Overlay (stainless)   (Replaces: W10531229) Special Order $ 246.71

8 W10528786 Assembly, Overlay (white) Appelez-nous -
8 W10528785 Assembly, Overlay (black) Appelez-nous -
9 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 86.94

10 WP3196068 Lens, Indicator   (Replaces: 3196068) In-Stock Immediately $ 5.63

11 WP74004153 Light, Indicator   (Replaces: 7407P136-60) In-Stock Immediately $ 8.02

12 WP7403P238-60 Switch, Infinite (right Rear)   (Replaces: 7403P373-60) In-Stock Immediately $ 67.30

12 WPW10441696 Switch, Infinite (left Front)   (Replaces: W10441696) In-Stock Immediately $ 119.45

12 WP7403P239-60 Switch, Infinite (right Front)   (Replaces: 7403P372-60) In-Stock Immediately $ 35.10

12 WPW10295048 Switch, Infinite (left Rear)   (Replaces: W10295048) In-Stock Immediately $ 143.96

13 WPW10437088 Knobs (chrome)   (Replaces: W10437088) In-Stock Immediately $ 19.60

13 W10437077 Knobs (black) Appelez-nous -
13 W10437075 Knobs (white) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

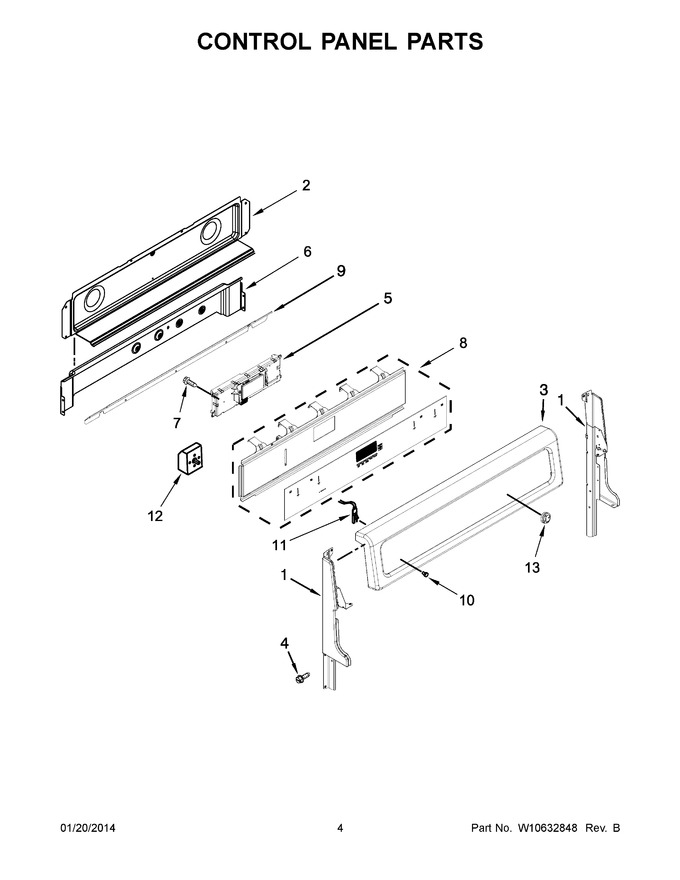

Diagram for WGE555S0BB00
