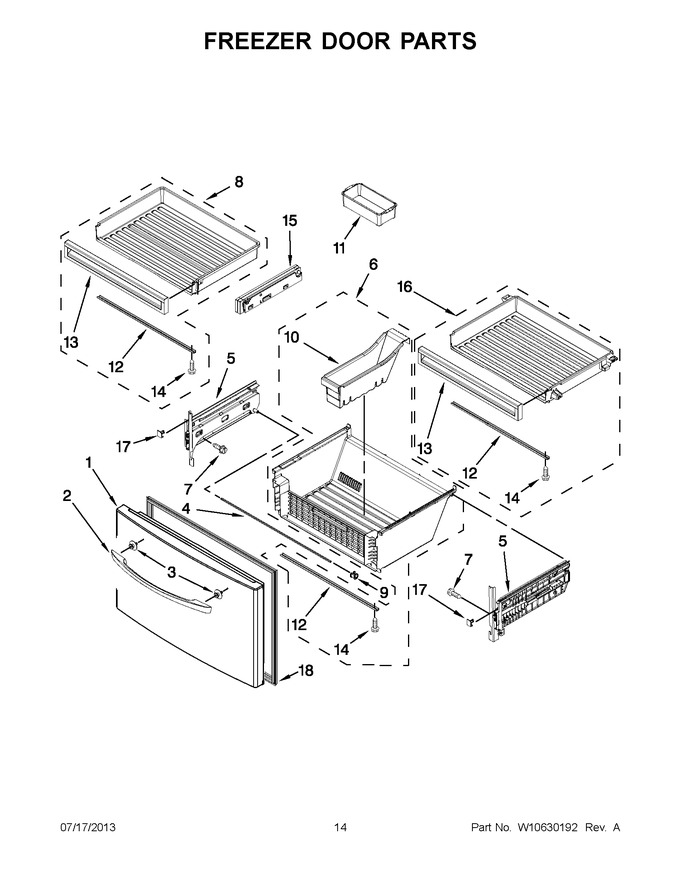

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10341279 | Freezer Door (stainless) |
|
- | |||||
| 2 | W10827046 | Handle, Door (stainless) (Replaces: W10557413N) |
|
Immediately | $ 209.79 | ||||
| 3 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 4 | WPW10503522 | Shaft (Replaces: W10503522) |
|
$ 88.29 | |||||
| 5 | W11668671 | Assembly, Bracket (right Hand) (Replaces: W10625068) |
|
Immediately | $ 476.13 | ||||
| 5 | W11668671 | Assembly, Bracket (left Hand) (Replaces: W10625067) |
|
Immediately | $ 476.13 | ||||
| 6 | W10594047 | Bin, Lower (Replaces: W10507445) |
|
$ 276.76 | |||||
| 7 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 8 | WPW10493169 | Bin, Upper (Replaces: W10493169) |
|
Immediately | $ 135.62 | ||||
| 9 | W10852685 | Clip, Shaft (Replaces: W10248509) |
|
$ 10.25 | |||||
| 10 | W10507444 | Divider, Lower |
|
$ 55.93 | |||||
| 11 | WPW10248856 | Bucket, Gallon (Replaces: W10248856) |
|
Immediately | $ 75.09 | ||||
| 12 | W11677723 | Support, Pan (Replaces: W10469177) |
|
Immediately | $ 139.59 | ||||
| 13 | W11175811 | Front, Upper Pan (Replaces: W10488124) |
|
$ 295.57 | |||||
| 14 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 7.50 | ||||
| 15 | W10858092 | Pan, Upper Adapter (right Hand) (Replaces: W10619218) |
|
$ 138.70 | |||||
| 15 | W10850332 | Pan, Upper Adapter (left Hand) (Replaces: W10619219) |
|
$ 127.43 | |||||
| 16 | W10858802 | Pan, Center Assembly (Replaces: W10493164) |
|
Immediately | $ 272.21 | ||||
| 17 | WPW10485096 | Stop, Pan (left Hand) (Replaces: W10485096) |
|
$ 75.29 | |||||
| 17 | WPW10485089 | Stop, Pan (right Hand) (Replaces: W10485089) |
|
$ 78.04 | |||||
| 18 | W10407216 | Gasket, Door (grey) (Replaces: W10248749) |
|
Immediately | $ 255.75 |
