SELECT A DIAGRAM

01 - Washer/dryer Control Panel Parts


02 - Dryer Front Panel And Door Parts


03 - Dryer Cabinet And Motor Parts


04 - Dryer Bulkhead Parts


05 - Dryer Support And Washer Parts


06 - Washer Cabinet Parts


07 - Washer Top And Lid Parts


08 - Tub And Basket Parts


09 - Machine Base Parts


10 - Brake,clutch,gearcase,motor And Pump Parts


11 - Miscellaneous Parts


12 - Brake And Drive Tube Parts


13 - Gearcase Parts


14 - Product Accessory Parts


15 - Optional Parts (not Included)

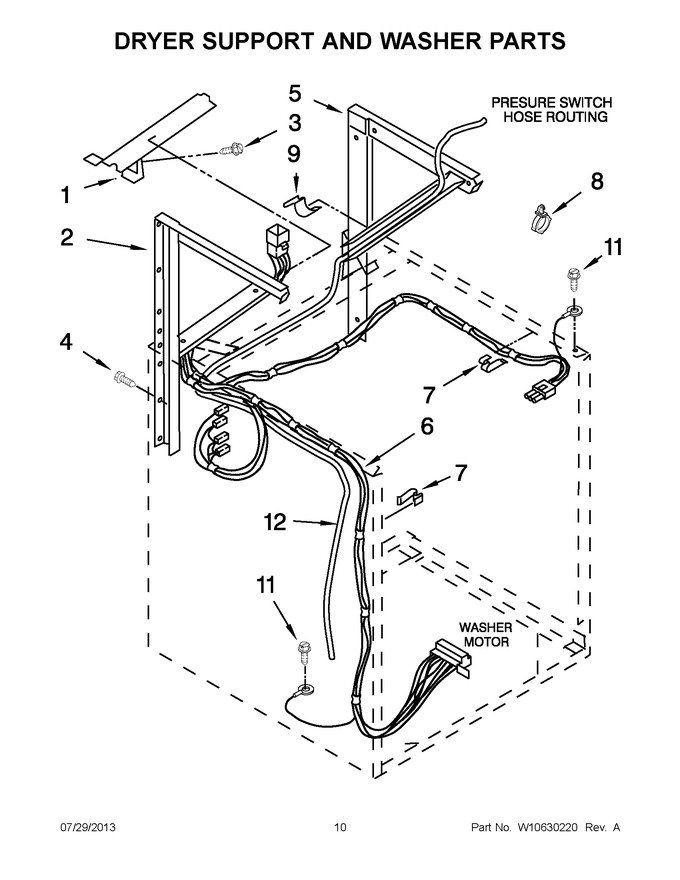

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	694304		Cover, Channel		Appelez-nous	-
2	W11174025		Support, Dryer (l.h.)   (Replaces: 692647)				$ 48.12
3	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
4	W11676450		Screw   (Replaces: 3400000)				$ 13.28
5	W11174024		Support, Dryer (r.h.)   (Replaces: 692646)				$ 123.40
6	W10303815		Harness, Lower (automatic)				$ 228.50
7	8528351		Clip, Harness Wiring   (Replaces: 3347812)		Appelez-nous	-
8	8559320		Clip, Push In   (Replaces: 3352501)				$ 43.33
9	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.70
11	WP3351614		Screw   (Replaces: 3351614)			Immediately	$ 6.57
12	WP353244		Hose, Pressure Switch   (Replaces: 8066080)			Immediately	$ 78.00

    View Diagram in Separate Window       Print Part List
