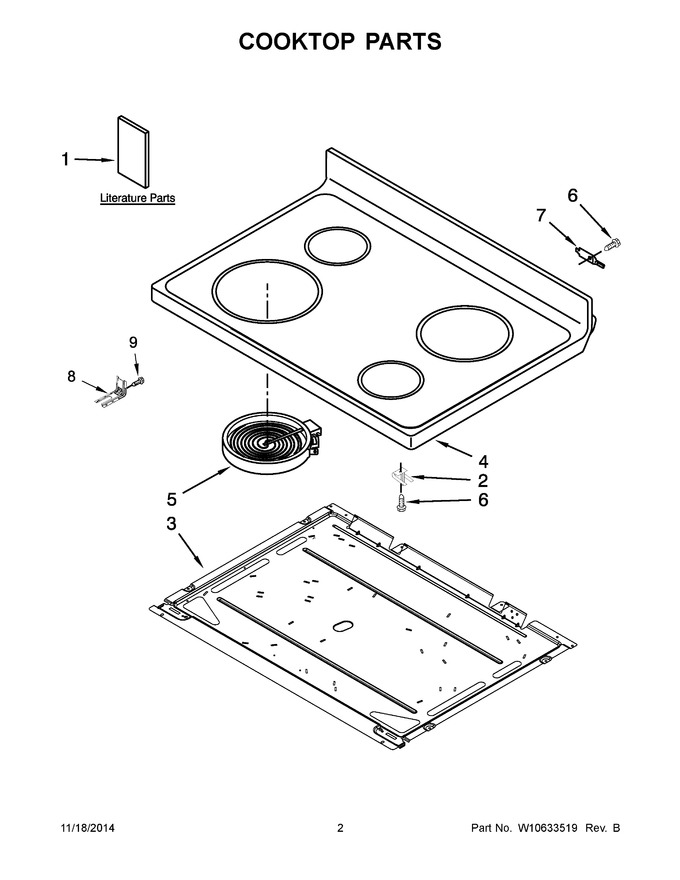

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403811		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
3	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
4	W10248202		Cooktop (white)   (Replaces: W10202165)				$ 543.38
5	WPW10242957		Element (2000w) (left Front And Right Rear)   (Replaces: 8523695)				$ 324.59
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.86
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
9	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 27.65
1A	W10572534		User Instructions		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10384447		Tech Sheet (english)		Appelez-nous	-
4A	W10248201		Cooktop (black)   (Replaces: W10202162)				$ 598.34
5A	W10823699		Element (1500w) (right Front And Left Rear)   (Replaces: 8523697)			Immediately	$ 152.96
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11171875		Harness, Wire (main)   (Replaces: W10251766)		Appelez-nous	-
NI	W10273585		Harness, Wire (cooktop Left)		Appelez-nous	-
NI	W10273584		Harness, Wire (cooktop Right)				$ 121.28
NI	W11232223		Harness, Door Switch Sensor   (Replaces: W10174459)				$ 194.44
NI	3184020		Wire, Ground   (Replaces: 8523279)				$ 78.23
NI	313660		Clip, Ground Wire		Appelez-nous	-
NI	WPW10144763		Tie, Cable   (Replaces: W10144763)				$ 7.14

    View Diagram in Separate Window       Print Part List
