SELECT A DIAGRAM

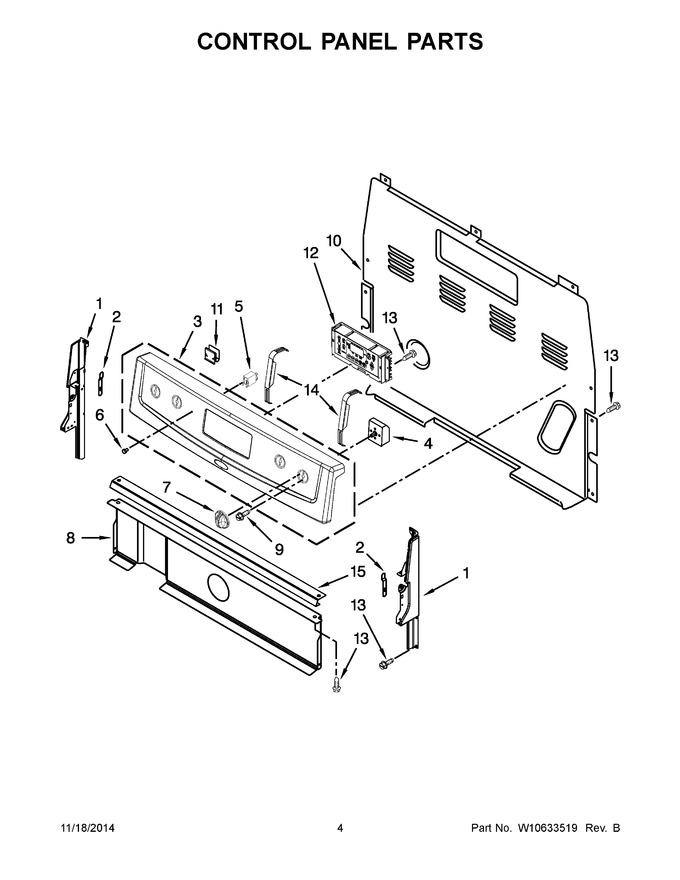

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Door Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 38.21
2	3196200		Clip, Spring				$ 9.41
3	W10572565		Panel, Console (white)		Appelez-nous	-
4	WP3148952		Switch, Infinite (yellow) (right Front And Left Rear)   (Replaces: 3148952)			Immediately	$ 62.56
5	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 91.76
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
7	WP9761962		Knobs (white)   (Replaces: 9761962)			Immediately	$ 18.59
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 11.39
12	WPW10572538		Control, Lcc180 (white)   (Replaces: W10626963)				$ 320.95
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
15	W10525121		Bracket, Console Mounting				$ 88.97
12A	WPW10572538		Control, Lcc180 (black)   (Replaces: W10626964)				$ 320.95
1A	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)			Immediately	$ 138.45
1B	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 54.75
1C	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)			Immediately	$ 40.65
3A	W10572567		Panel, Console (black)		Appelez-nous	-
3B	W10572569		Panel, Console (stainless)		Appelez-nous	-
4A	5500-287		Switch, Infinite (left Front And Right Rear)   (Replaces: 3148953)			Immediately	$ 49.03
7A	WP9761964		Knobs (black)   (Replaces: 9761964)			Immediately	$ 20.07

    View Diagram in Separate Window       Print Part List
