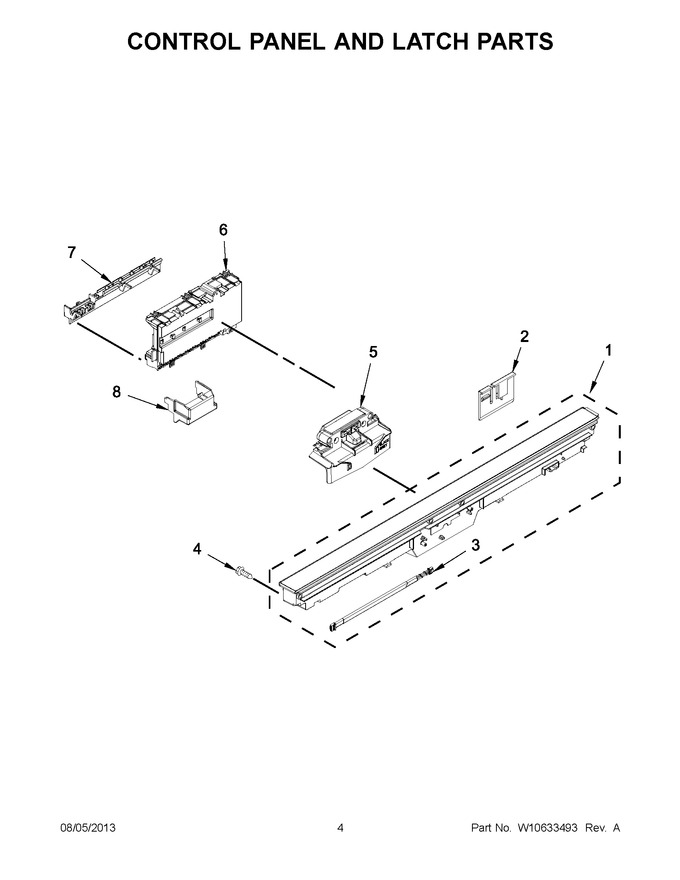

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10501710 | Console Assembly (includes Insert) (black) |
|
$ 398.37 | |||||
| 1 | WPW10501711 | Console Assembly (includes Insert) (white) (Replaces: W10501711) |
|
$ 372.07 | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | W10528492 | Jumper, 4 Wire |
|
$ 30.11 | |||||
| 4 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 5 | W10619006 | Latch Assembly (includes Switch) (Replaces: W10550100) |
|
Immediately | $ 39.09 | ||||
| 6 | W10866118 | Control, Electronic (Replaces: W10481091) |
|
Immediately | $ 351.94 | ||||
| 7 | WPW10462395 | Brace, Connector (Replaces: W10462395) |
|
$ 21.65 | |||||
| 8 | WPW10462393 | Box, Connector (Replaces: W10462393) |
|
$ 8.56 |
