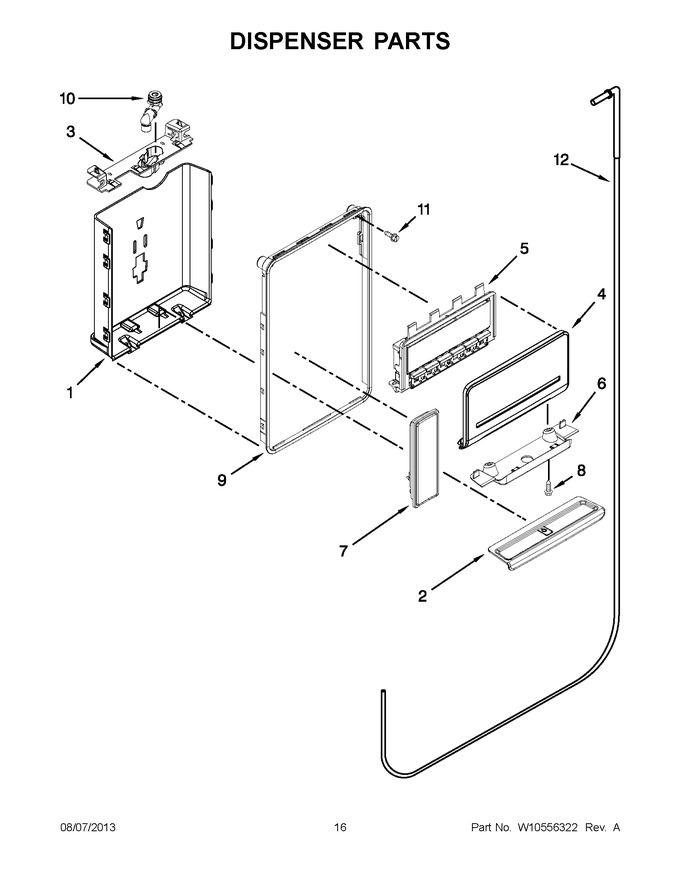

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10356019 | Drip Tray, Grey (Replaces: W10356019) |
|
Immediately | $ 54.24 | ||||
| 3 | W11616802 | Separator (Replaces: W10300437) |
|
$ 18.66 | |||||
| 4 | W10356022 | Fascia, Sparsh (silver Mirror) |
|
- | |||||
| 5 | W10836784 | Ui Assembly, Sparsh (Replaces: W10416104) |
|
$ 321.02 | |||||
| 6 | W10356029 | Cover, Separator (chromium Frost) |
|
$ 41.62 | |||||
| 7 | W11715936 | Pad Assembly (grey) (Replaces: W10433548) |
|
$ 134.33 | |||||
| 8 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 9 | W10356017 | Trim Ring |
|
Immediately | $ 51.58 | ||||
| 10 | WP2305235 | Assembly, Spigot (Replaces: 2305235) |
|
Immediately | $ 132.36 | ||||
| 11 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 12 | WPW10238094 | Water Tube (Replaces: W10238094) |
|
$ 123.42 |
