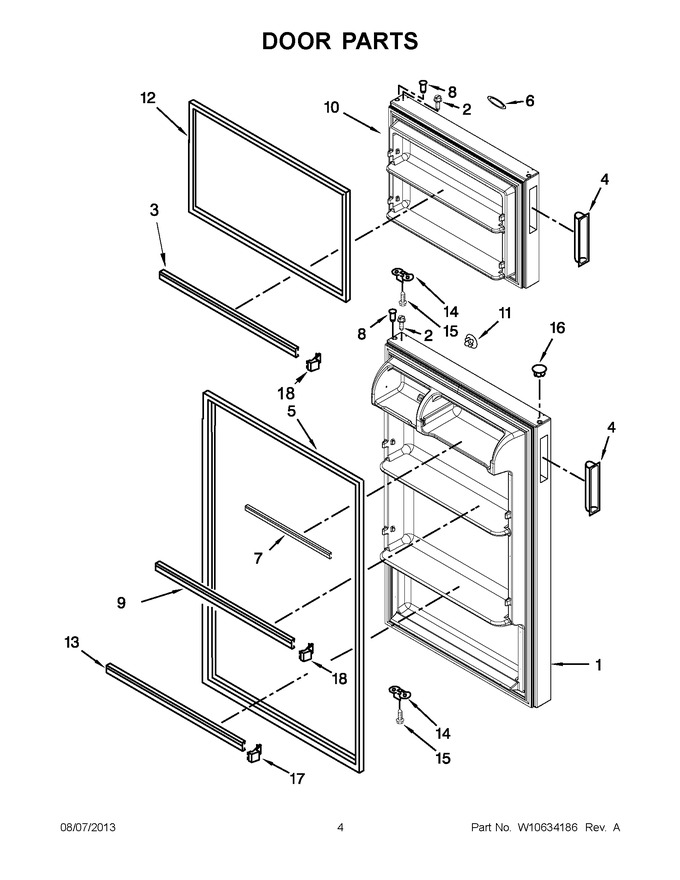

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316197W | Refrigerator Door (white) |
|
$ 609.89 | |||||
| 2 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 3 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 4 | WP984493 | Handle (white) (Replaces: 984493) |
|
$ 103.04 | |||||
| 5 | WP2319265T | Door Gasket (beige) (Replaces: W10190033) |
|
Immediately | $ 210.38 | ||||
| 6 | 2204652 | Nameplate |
|
- | |||||
| 7 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 114.61 | ||||
| 8 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 9 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 10 | 2316196W | Freezer Door (white) |
|
$ 545.55 | |||||
| 11 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 12 | WP2319263T | Door Gasket (beige) (Replaces: W10190031) |
|
Immediately | $ 194.27 | ||||
| 13 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 105.55 | |||||
| 14 | 2217944 | Bracket, Door Stop |
|
$ 26.55 | |||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 16 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 17 | WP2195916K | Endcap, Door Trim (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 18 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 |
