Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LW10393587 Refrigerator Door (includes No.8) (white, Left Hand)   (Replaces: W10393587) Special Order $ 542.72

1 LW10353181 Refrigerator Door (includes No.8) (white, Right Hand)   (Replaces: W10353181) Special Order $ 741.21

1 LW10413522 Refrigerator Door(includes No.8) (black, Left Hand)   (Replaces: W10413522) Special Order $ 430.46

1 LW10413518 Refrigerator Door (includes No.8) (black, Right Hand)   (Replaces: W10413518) Special Order $ 573.44

2 W11745278 Bracket, Door Stop (silver)   (Replaces: 2189202) In-Stock Immediately $ 12.03

3 WP681249 Screw   (Replaces: 489276) In-Stock Immediately $ 7.43

4 W11189115 Thimble, Left Hand   (Replaces: W10334042) Special Order $ 11.44

4 W11544568 Thimble, Right Hand   (Replaces: W10366270) In-Stock Immediately $ 12.56

5 W11178521 Badge, Whirlpool (grey)   (Replaces: W10481433) In-Stock Immediately $ 56.82

5 W11178521 Badge, Whirlpool (white)   (Replaces: W10481434) In-Stock Immediately $ 56.82

6 WPW10470155 Door Closure   (Replaces: W10470155) In-Stock Immediately $ 6.80

7 WPW10308869 Bin, Medium   (Replaces: W10308869) In-Stock Immediately $ 69.93

8 W10460610 Gasket, Rc (black)   (Replaces: W10413465) Special Order $ 251.58

8 W10460612 Gasket, Rc (beige)   (Replaces: W10353189) In-Stock Immediately $ 281.09

9 W11459378 Handle Assembly (stainless)   (Replaces: W10356566) In-Stock Immediately $ 165.50

10 WPW10317224 Utility Compartment   (Replaces: W10317224) Special Order $ 93.42

11 W11106787 Condiment Caddy   (Replaces: W10462299) In-Stock Immediately $ 96.28

12 WPW10326335 Shallow Bin   (Replaces: W10326335) In-Stock Immediately $ 58.31

13 W11692845 Flipper Mullion Assembly (black)   (Replaces: W10448923) Special Order $ 217.49

13 WPW10624451 Flipper Mullion Assembly (white)   (Replaces: W10448918) In-Stock Immediately $ 119.34

14 W10854958 Screw   (Replaces: 12990302) Special Order $ 7.11

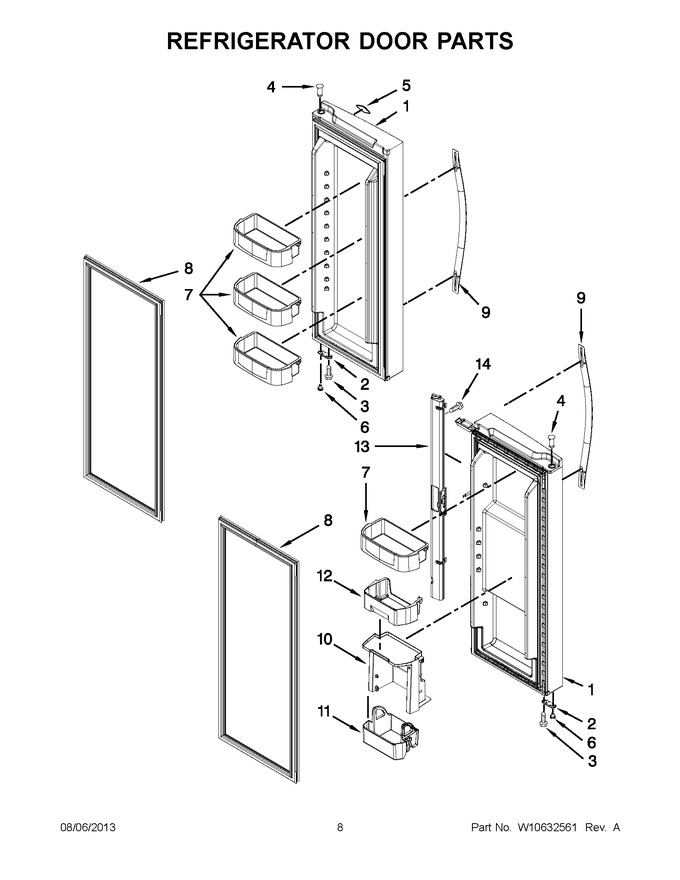

    View Diagram in Separate Window     Print Icon   Print Part List
