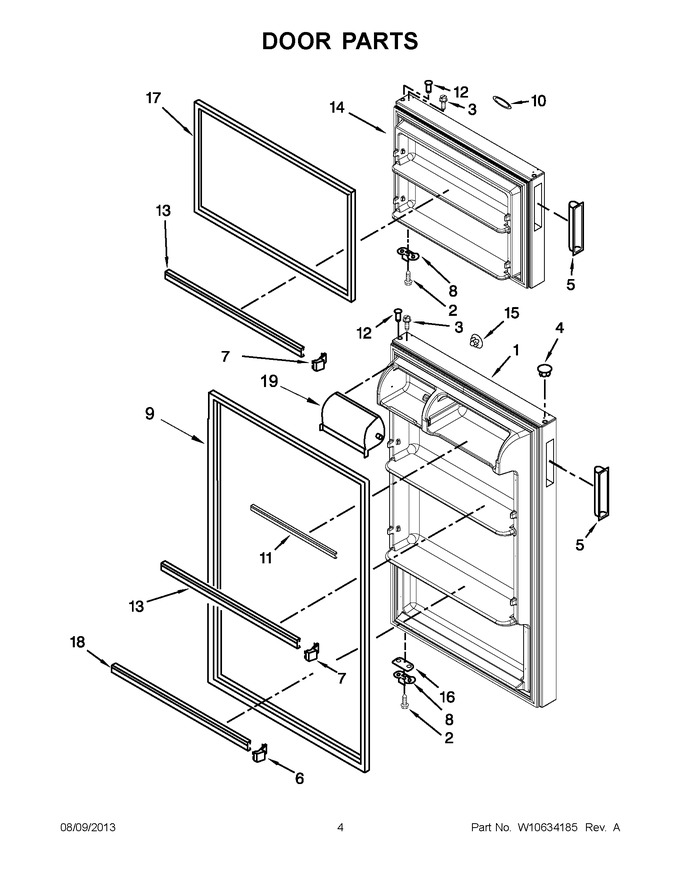

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10595309 | Refrigerator Door (white) |
|
- | |||||
| 2 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 4 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 5 | WP984493 | Handle (white) (Replaces: 984493) |
|
$ 103.04 | |||||
| 6 | WP2195916K | End Cap, Door Trim (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 7 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 8 | W11745278 | Bracket, Door Stop (silver) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 9 | WP2319264T | Gasket, Rc (beige) (Replaces: W10190032) |
|
Immediately | $ 193.96 | ||||
| 10 | 2325418 | Nameplate (silver) |
|
$ 44.68 | |||||
| 11 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 114.61 | ||||
| 12 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 13 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 14 | 2316343W | Freezer Door (white) |
|
- | |||||
| 15 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 16 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.80 | ||||
| 17 | WP2319263T | Gasket, Fc (beige) (Replaces: W10190031) |
|
Immediately | $ 194.27 | ||||
| 18 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 100.52 | |||||
| 19 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 65.89 |
