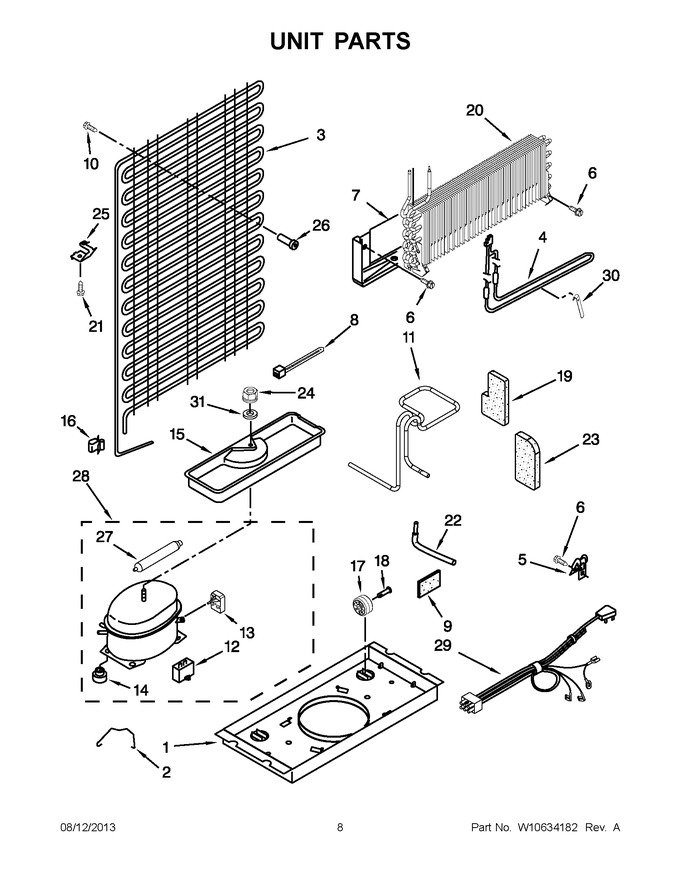

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10222451		Support Plate, Compressor				$ 32.07
2	2212996		Bale Strap				$ 11.45
3	WPW10219349		Condenser   (Replaces: W10219349)				$ 261.63
4	WP2263749		Heater, Defrost   (Replaces: 2176942)			Immediately	$ 84.33
5	549193		Clamp, Power Cord				$ 12.65
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
7	2319224		Heat Shield				$ 116.21
8	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.47
9	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 13.29
10	8533892		Screw		Appelez-nous	-
11	WPW10442467		Tube, Discharge   (Replaces: W10442467)				$ 106.72
12	WP65889-4		Capacitor   (Replaces: 2252799)			Immediately	$ 62.10
13	WPW10399283		Start Device,   (Replaces: W10399283)				$ 158.68
14	WPW10169124		Grommet   (Replaces: 2264447)				$ 6.80
15	W10174378		Tray, Evaporator				$ 156.50
16	W10812038		Clip, Wire (compressor)   (Replaces: 939054)		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: W10475495)			Immediately	$ 28.85
18	WP2264756		Axle, Roller   (Replaces: 2264756)				$ 6.80
19	2262191		Wedge, Evaporator		Appelez-nous	-
20	WP2263920		Evaporator   (Replaces: 2263920)			Immediately	$ 299.90
21	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
22	W11676464		Tube, Process   (Replaces: VS20001)				$ 97.75
23	2262192		Wedge, Evaporator		Appelez-nous	-
24	285002		Nut, Hex   (Replaces: 489153)				$ 11.57
25	4386951		Clip, Condenser   (Replaces: 2172892)		Appelez-nous	-
26	2258452		Spacer, Condenser		Appelez-nous	-
27	W10843121		Drier   (Replaces: W10190413)			Immediately	$ 51.42
28	W10822653		Compressor (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: W10399120)				$ 351.58
29	W10151654		Harness, Unit				$ 277.52
30	W11807361		Heat Probe   (Replaces: 2258429)				$ 18.11
31	WP487802		Washer (plastic)   (Replaces: 487802)			Immediately	$ 7.12
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge 3.75 Oz. (r-134)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
