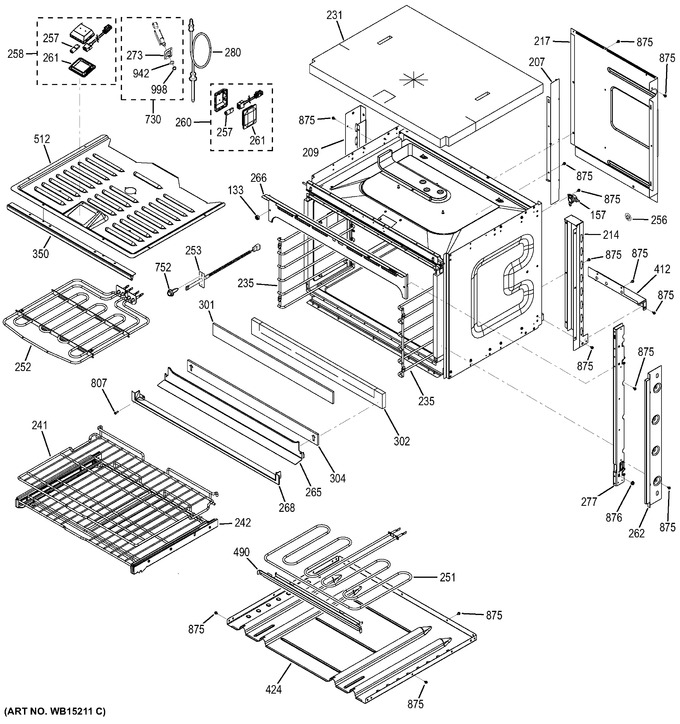

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 133 | WB03T10341 | Bumper Door |
|
- | |||||
| 157 | WB24T10164 | Switch High Limit |
|
- | |||||
| 207 | WB34T10134 | Divider Air Center |
|
- | |||||
| 209 | WB34T10133 | Channel Air Rear Left |
|
- | |||||
| 217 | WB34T10136 | Cover - Upper Rear Duct |
|
- | |||||
| 231 | WB35X10019 | Insulation Top |
|
- | |||||
| 235 | WG02L04618 | Guide Oven Rack Right (Replaces: WB48T10106) |
|
$ 134.75 | |||||
| 235 | WB48T10107 | Guide Oven Rack Left |
|
- | |||||
| 241 | WG02L07810 | Rack Pack Asm (Replaces: WB48X20780) |
|
$ 145.62 | |||||
| 242 | WB48T10104 | Rack Oven & Slide Asm Sc |
|
- | |||||
| 251 | WB44T10129 | Element Bake |
|
- | |||||
| 252 | WB44T10130 | Element Broil Asm |
|
- | |||||
| 253 | WB21X10165 | Sensor Asm |
|
- | |||||
| 256 | WB01T10107 | Retainer Bolt |
|
- | |||||
| 257 | WB25T10102 | Lamp Halogen Bulb G9 |
|
- | |||||
| 258 | WB25X20199 | Lamp Halogen Asm |
|
- | |||||
| 260 | WB25X20200 | Lamp Halogen Asm |
|
- | |||||
| 261 | WB34T10145 | Lens Oven Light |
|
- | |||||
| 262 | WB07X11404 | Trim Vert Side (wh) |
|
- | |||||
| 265 | WB07X21187 | Trim Vent Lwr |
|
- | |||||
| 266 | WB07T10797 | Trim Vent Upr (bk) |
|
- | |||||
| 268 | WB07T10773 | Trim Bottom Cabinet |
|
- | |||||
| 273 | WB34K5140 | Pr0be Cover |
|
- | |||||
| 277 | WB07T10754 | Brace Vertical Right Blk |
|
- | |||||
| 277 | WG02A03396 | Brace Vertical Left Blk (Replaces: WB07T10755) |
|
$ 94.84 | |||||
| 280 | WG02F05721 | Probe Thermistor (Replaces: WB20T10025) |
|
Immediately | $ 63.86 | ||||
| 301 | WB35T10256 | Foil Insulation Bake |
|
- | |||||
| 302 | WB35T10257 | Insulation Bake |
|
- | |||||
| 304 | WB35T10274 | Insulation Bottom Trim |
|
- | |||||
| 350 | WB07T10787 | Trim Broil Element (bk) |
|
- | |||||
| 412 | WB34T10151 | Cover Lower Rt Air Duct |
|
- | |||||
| 424 | WB34T10158 | Cover Bottom Air Duct |
|
- | |||||
| 490 | WB55T10197 | Cover Hidden Bake |
|
- | |||||
| 512 | WB37T10024 | Plate - Top Oven |
|
- | |||||
| 730 | WB08T10050 | Meat Probe And Harness |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 807 | WR01X10788 | Screw-white |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 876 | WB01T10127 | Lock Nut |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 998 | WG02A00927 | Nut Meat Probe (Replaces: WB1X5572) |
|
$ 67.26 |
