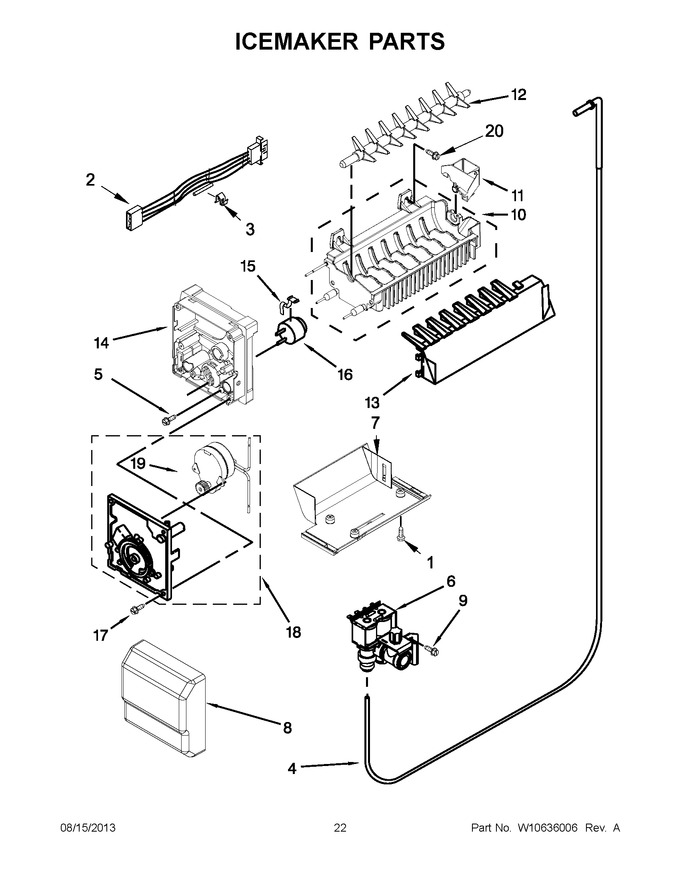

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 2 | W10421567 | Wire Assembly, Icemaker |
|
- | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 4 | WPW10140630 | Fitting, Water (Replaces: W10140630) |
|
$ 128.31 | |||||
| 5 | W10001280 | Screw |
|
- | |||||
| 6 | WPW10445780 | Filter Valve Assembly (Replaces: W10445780) |
|
$ 231.93 | |||||
| 7 | W10445788 | Bracket, Icemaker Mounting |
|
- | |||||
| 8 | W10445790 | Cover, Icemaker |
|
- | |||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 20.00 | |||||
| 10 | W10161596 | Mold & Heater Assembly (also Order 542638 Grease) |
|
$ 181.79 | |||||
| 11 | W10445784 | Cup-water Fill |
|
- | |||||
| 12 | W10318644 | Ejector |
|
$ 25.13 | |||||
| 13 | W10445786 | Stripper, Ice |
|
$ 78.00 | |||||
| 14 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 98.82 | |||||
| 15 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 16 | WP2321258 | Thermostat (also Order No.542369) (Replaces: 2321258) |
|
$ 93.54 | |||||
| 17 | W10001240 | Screw |
|
$ 8.30 | |||||
| 18 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 151.00 | ||||
| 19 | N/P | Motor (not Serviced Order No.18) |
|
- | |||||
| 20 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 100 | WPW10445782 | Complete Icemaker Assembly (Replaces: W10445782) |
|
$ 165.24 |
