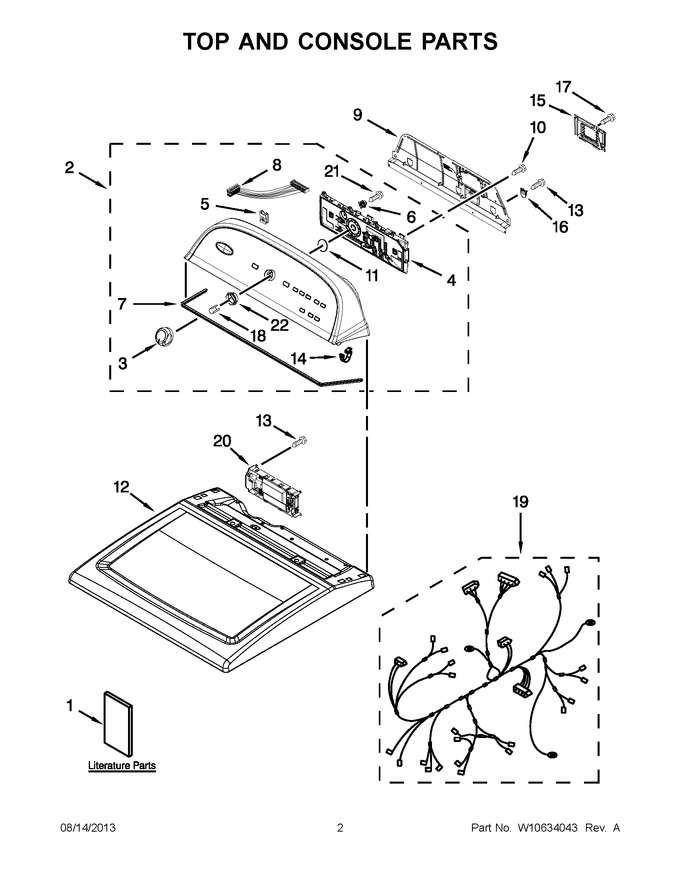

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10417013 | Tech Sheet |
|
- | |||||
| 1 | W10259284 | Wiring Diagram |
|
- | |||||
| 1 | W10097053 | Guide, Use & Care |
|
- | |||||
| 1 | W10514185 | Installation Instructions |
|
- | |||||
| 2 | W10295169 | Panel, Console (white) |
|
- | |||||
| 3 | WPW10251392 | Knob Assembly (white) (Replaces: W10251392) |
|
$ 53.60 | |||||
| 4 | WPW10352593 | Assembly, User Interface (Replaces: W10352593) |
|
$ 241.99 | |||||
| 5 | W11213336 | Nut, ``u`` (Replaces: W10298336) |
|
$ 7.32 | |||||
| 6 | W10274524 | Tensioner, Fascia |
|
- | |||||
| 7 | W10280079 | Seal, Console |
|
- | |||||
| 8 | W10285494 | Cable, User Interface |
|
- | |||||
| 9 | W10096969 | Panel, Rear Console |
|
$ 178.02 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 11 | W10323092 | Seal, User Interface |
|
- | |||||
| 12 | W11641121 | Top (white) (Replaces: W10260246) |
|
Immediately | $ 193.59 | ||||
| 13 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 15.66 | ||||
| 15 | W10338363 | Cover, Terminal Block |
|
- | |||||
| 16 | W10279552 | Plug, Upper Rear Panel |
|
- | |||||
| 17 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 7.43 | ||||
| 18 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 19 | W10253982 | Harness, Wiring |
|
- | |||||
| 20 | WPW10352638 | Control, Electronic (Replaces: W10352638) |
|
Immediately | $ 270.83 | ||||
| 21 | W10853898 | Screw (Replaces: W10219342) |
|
$ 7.36 | |||||
| 22 | W10325119 | Spacer, Knob |
|
- |
