Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10321109 Top Grille Assembly (left Hand) Special Order $ 375.39

1 W10321108 Top Grille Assembly (right Hand) Special Order $ 281.72

2 W10624563 Cover, Unit Appelez-nous -
3 2256466 Panel, Unit Back Special Order $ 294.50

4 W10185625 Unit Cover, Front Special Order $ 262.53

5 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.56

6 2317923S Nameplate (stainless) Appelez-nous -
7 WP489399 Screw   (Replaces: 489399) Special Order $ 6.57

8 WP2004333 Nut   (Replaces: 2004333) Special Order $ 10.12


    View Diagram in Separate Window     Print Icon   Print Part List

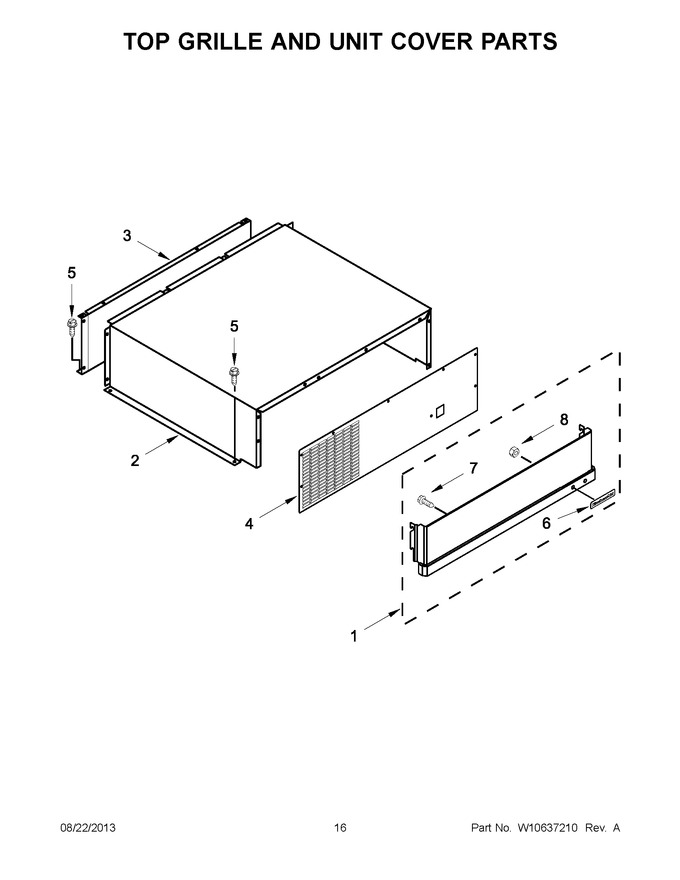

Diagram for KBLC36FTS08
