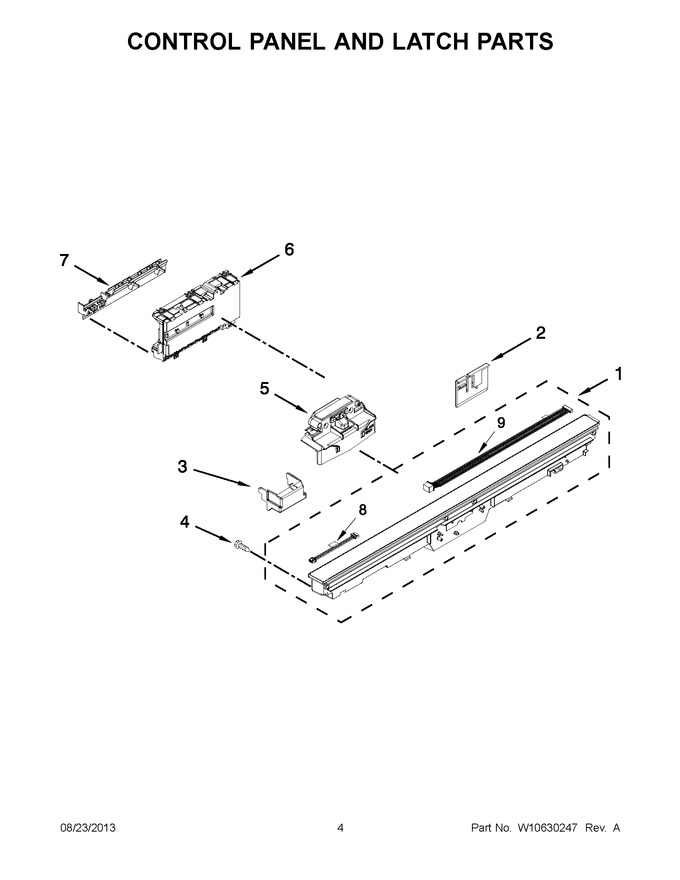

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10584485 | Console Assembly |
|
- | |||||
| 2 | W11256107 | Clip. Control (Replaces: W10195237) |
|
$ 20.94 | |||||
| 3 | WPW10462393 | Box, Connector (Replaces: W10462393) |
|
$ 7.70 | |||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 6.80 | ||||
| 5 | W10619006 | Latch Assembly (includes Switch) (Replaces: W10550100) |
|
Immediately | $ 35.18 | ||||
| 6 | W10636417 | Control, Electronic (Replaces: W10584459) |
|
- | |||||
| 7 | WPW10462395 | Brace, Connector (Replaces: W10462395) |
|
$ 19.49 | |||||
| 8 | W10528492 | Jumper, 4 Wire |
|
$ 27.10 | |||||
| 9 | WPW10195204 | Jumper, 14 Wire (Replaces: W10195204) |
|
$ 35.44 |
