View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts

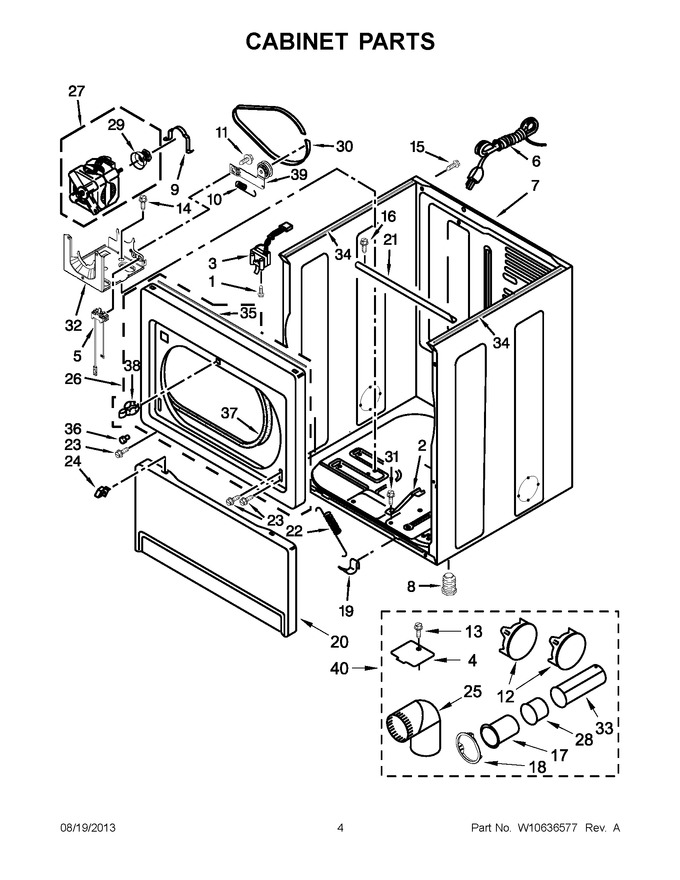

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - 8576353 Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 2 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 3 | WP3406107 | Switch, Door (Replaces: 3406107) |
|
Immediately | $ 28.08 | ||||
| 4 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 8.47 | |||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10411936) |
|
Immediately | $ 24.21 | ||||
| 6 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 113.96 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 396.15 | |||||
| 8 | W11025920 | Foot, Dryer (Replaces: W10561321) |
|
Immediately | $ 22.22 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 68.02 | |||||
| 13 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.45 | ||||
| 14 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 16 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 17 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 86.36 | |||||
| 18 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 77.13 | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.33 | |||||
| 20 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 225.23 | |||||
| 21 | W10236068 | Bracket, Cabinet |
|
$ 22.02 | |||||
| 22 | WP3387565 | Spring, Door (Replaces: 3387565) |
|
$ 37.19 | |||||
| 23 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 24 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 25 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 25.34 | |||||
| 26 | 697227 | Panel, Front (white) |
|
- | |||||
| 27 | 279787 | Assembly, Motor 60 Hz. (Replaces: W10317045) |
|
Immediately | $ 222.14 | ||||
| 28 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 74.61 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: W10402907) |
|
Immediately | $ 11.49 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 31 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 85.36 | ||||
| 33 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 83.92 | |||||
| 34 | W10336128 | Seal, Foam |
|
$ 13.57 | |||||
| 35 | W10312811 | Seal, Spill Guard |
|
$ 60.96 | |||||
| 36 | 693152 | Bumper |
|
$ 10.36 | |||||
| 37 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 38 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 39 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 40 | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 80.96 |
