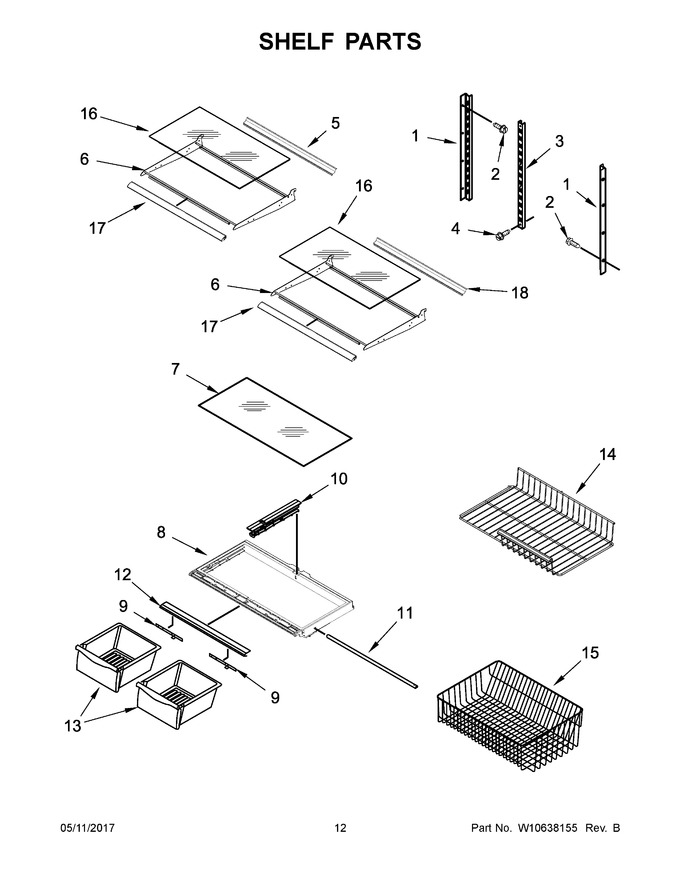

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251970 | Ladder, Side |
|
$ 26.90 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 26.65 | |||||
| 4 | W10215666 | Screw |
|
$ 8.58 | |||||
| 5 | WP10946013 | Trim, Rear Shelf (Replaces: 10946013) |
|
$ 118.66 | |||||
| 6 | W10840992 | Frame, Shelf (Replaces: 10460115) |
|
$ 203.74 | |||||
| 7 | WP67006877 | Glass, Crisper Cover (Replaces: 12204823N) |
|
Immediately | $ 198.43 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: W10671240) |
|
Immediately | $ 151.88 | ||||
| 9 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 10 | WPW10671238 | Rail, Center Crisper (Replaces: W10671238) |
|
Immediately | $ 106.61 | ||||
| 11 | WP12227302WD | Brace, Crisper Cover (Replaces: 12227302WD) |
|
$ 100.44 | |||||
| 12 | WPW10231481 | Trim, Crisper (Replaces: W10231481) |
|
$ 105.68 | |||||
| 13 | W10833528 | Pan, Crisper (Replaces: 12531305) |
|
Immediately | $ 140.67 | ||||
| 14 | 12476801 | Shelf, Stationary |
|
$ 136.27 | |||||
| 15 | WP12754803 | Basket, Freezer (lower) (Replaces: 12754803) |
|
$ 240.32 | |||||
| 16 | WP12204809 | Shelf, Glass (Replaces: 12204809) |
|
$ 226.10 | |||||
| 17 | WPW10231329 | Trim, Front Shelf (Replaces: W10231329) |
|
$ 107.65 |
